HXY MOSFETDatasheet (PDF)

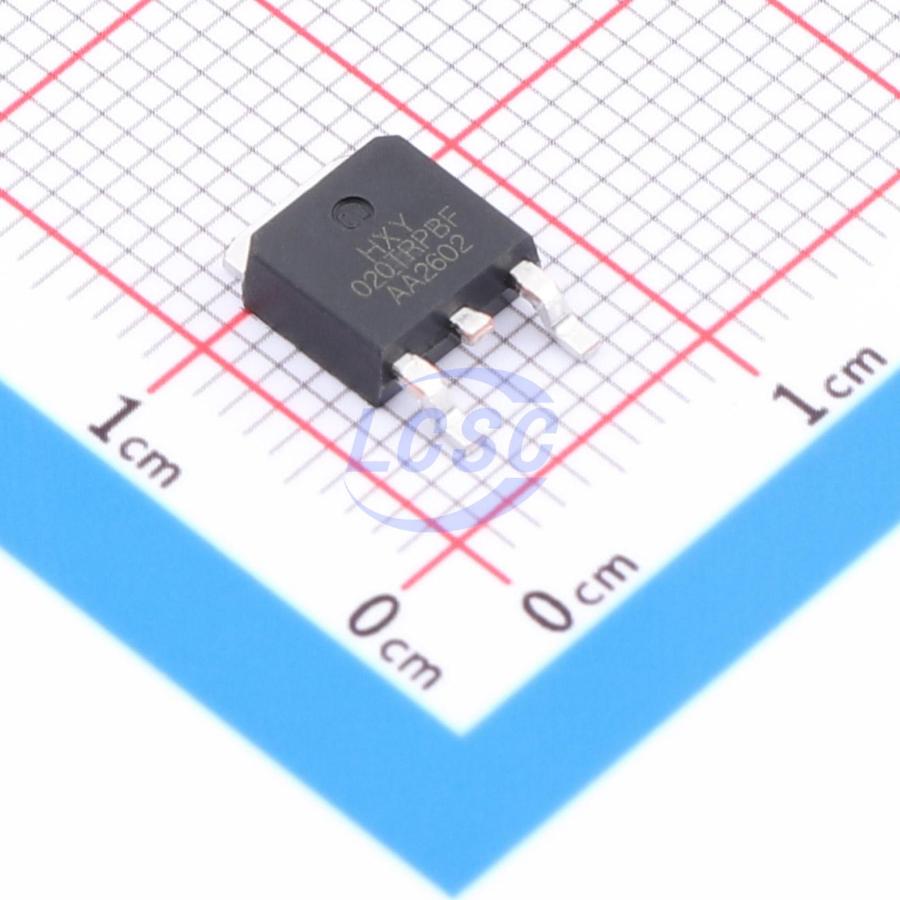

IRFR9020TRPBF-HXY
P-Channel 60V 10A 31.3W Surface Mount TO-252-2L
TO-252-2LRoHSActive
MOSFET P-CH 60V 10A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRFR9020TRPBF-HXY
- Store part #
- C22366780
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C22366780
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.19 | ₹56.19 |
| 10+ | ₹44.73 | ₹447.30 |
| 30+ | ₹39.76 | ₹1,192.80 |
| 100+ | ₹33.71 | ₹3,371.00 |
| 500+ | ₹30.91 | ₹15,455.00 |
| 1,000+ | ₹29.17 | ₹29,170.00 |
1 × ₹56.19
₹56.19
excl. GST
₹66.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR9020TRPBF-HXY
₹56.19 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 51pF
- Ciss-Input Capacitance
- 715pF
- Pd - Power Dissipation
- 25W
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 10A
- Reverse Transfer Capacitance (Crss)
- 34pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.85nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.354 g
Overview
IRFR9020TRPBF utilizes advanced trench technology, featuring excellent RDS(ON), low gate charge, and operation down to 4.5V gate voltage. The device is suitable for battery protection and other switching applications.
Applications
- Brushless motor
- Load switch
- Uninterruptible power supply
Key features
- VDS = -60V, ID = -10A
- RDS(ON) < 140mΩ at VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD25DP06NM-HXY#C20606266HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 3 | ₹68.85 · 3 in stock | View |
 | DMP6185SK3-HXY#C22366771HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 25 | ₹31.18 · 25 in stock | View |
 | AUIRFR9024N-HXY#C22366773HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 133 | ₹57.89 · 133 in stock | View |
 | NTD2955-HXY#C22366774HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 40 | ₹49.35 · 40 in stock | View |
 | STP607D-HXY#C22366775HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 15 | ₹22.95 · 15 in stock | View |
