VISHAYDatasheet (PDF)

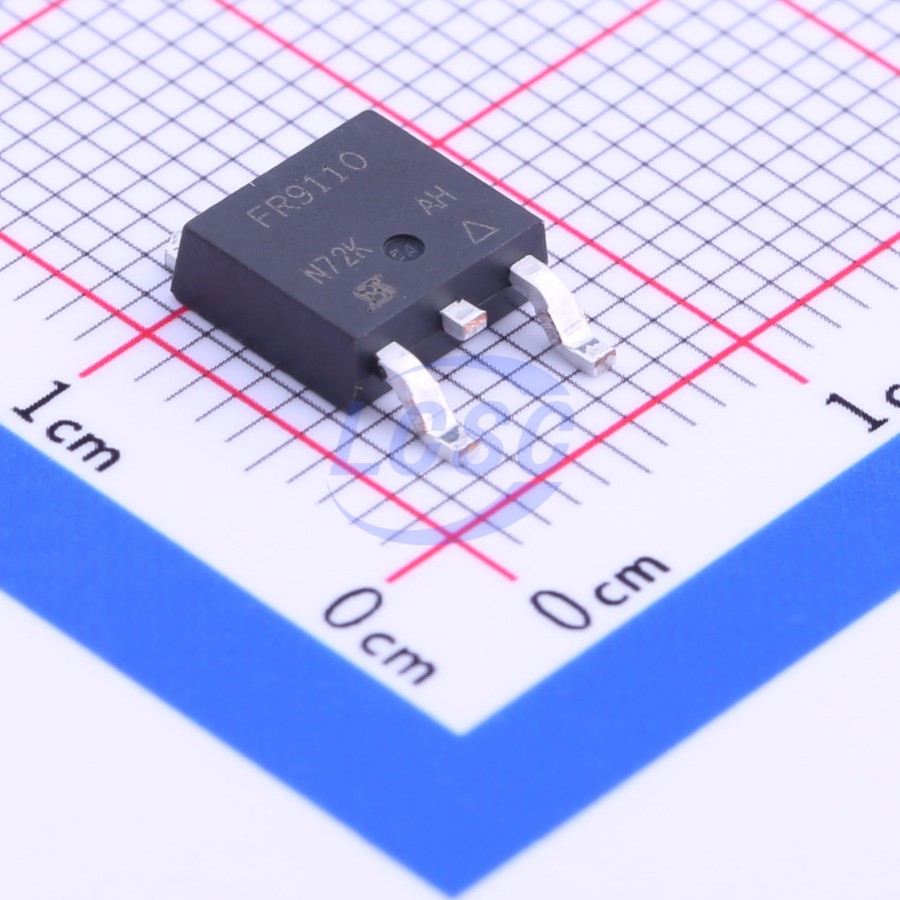

IRFR9110TRPBF
P-Channel 100V 3.1A 25W Surface Mount TO-252-2(DPAK)
TO-252-2(DPAK)ROHS3 CompliantActive
MOSFET P-CH 100V 3.1A TO-252-2(DPAK)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFR9110TRPBF
- Store part #
- C143721
- Package / case
- TO-252-2(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,597 in stock
#C143721
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.68 | ₹80.68 |
| 10+ | ₹69.80 | ₹698.00 |
| 30+ | ₹64.59 | ₹1,937.70 |
| 100+ | ₹59.36 | ₹5,936.00 |
| 500+ | ₹52.84 | ₹26,420.00 |
| 1,000+ | ₹51.11 | ₹51,110.00 |
1 × ₹80.68
₹80.68
excl. GST
₹95.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRFR9110TRPBF
₹80.68 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 94pF
- Ciss-Input Capacitance
- 200pF
- Pd - Power Dissipation
- 25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 3.1A
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 1.2Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8.7nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.528 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effictiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU Series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
Key features
- RoHS COMPLIANT HALOGEN FREE Available
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Surface Mount (IRFR9110, SiHFR9110)
- Straight Lead (IRFU9110, SiHFU9110)
- Available in Tape and Reel
- P-Channel
- Fast Switching
