MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
TECH PUBLICDatasheet (PDF)

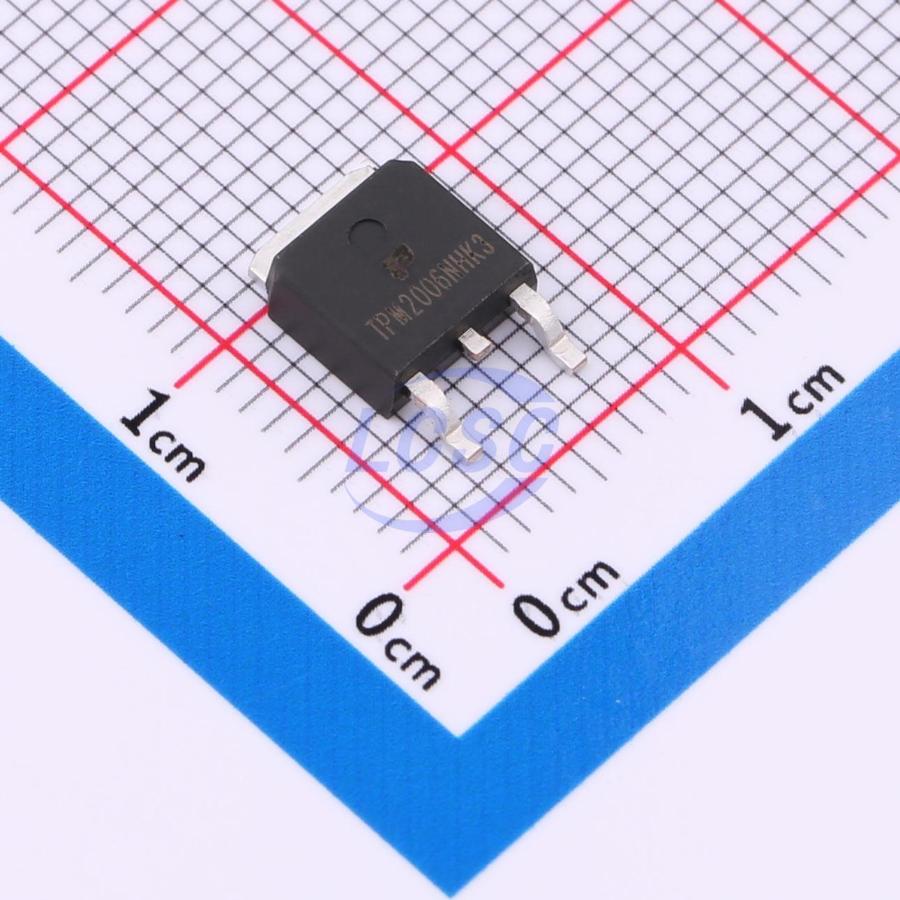

IRFR9N20DTRPBF-TP
N-Channel 200V 6A 38.4W Surface Mount TO-252-3L
TO-252-3LRoHSActive
MOSFET N-CH 200V 6A TO-252-3L
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRFR9N20DTRPBF-TP
- Store part #
- C41348199
- Package / case
- TO-252-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,790 in stock
#C41348199
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.28 | ₹136.40 |
| 50+ | ₹21.42 | ₹1,071.00 |
| 150+ | ₹18.91 | ₹2,836.50 |
| 500+ | ₹15.77 | ₹7,885.00 |
| 2,500+ | ₹14.38 | ₹35,950.00 |
| 5,000+ | ₹13.55 | ₹67,750.00 |
5 × ₹27.28
₹136.40
excl. GST
₹160.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR9N20DTRPBF-TP
₹136.40 for 5 + GST
Specifications
- Drain to Source Voltage
- 200V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 46.9pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 182pF
- Pd - Power Dissipation
- 38.4W
- Reverse Transfer Capacitance (Crss)
- 5.6pF
- RDS(on)
- 650mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.556 g
Overview
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Ulitra Small Portable Electronics
- Logic Level Shift
Key features
- VDS = 200V
- ID = 6.0A
- Rds(On) ≤ 0.65Ω @Vgs = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK3635#C41348069TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 125 | ₹25.73 · 125 in stock | View |
 | FDD6N20TM-TP#C41348168TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 200 | ₹25.73 · 200 in stock | View |
 | FDD7N20TM-TP#C41348169TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 105 | ₹25.73 · 105 in stock | View |
 | IRFR220NTRPBF-TP#C41348197TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 2,600 | ₹27.47 · 2,600 in stock | View |
 | MTD6N20ET4G-TP#C41348079TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 130 | ₹25.73 · 130 in stock | View |
