VISHAYDatasheet (PDF)

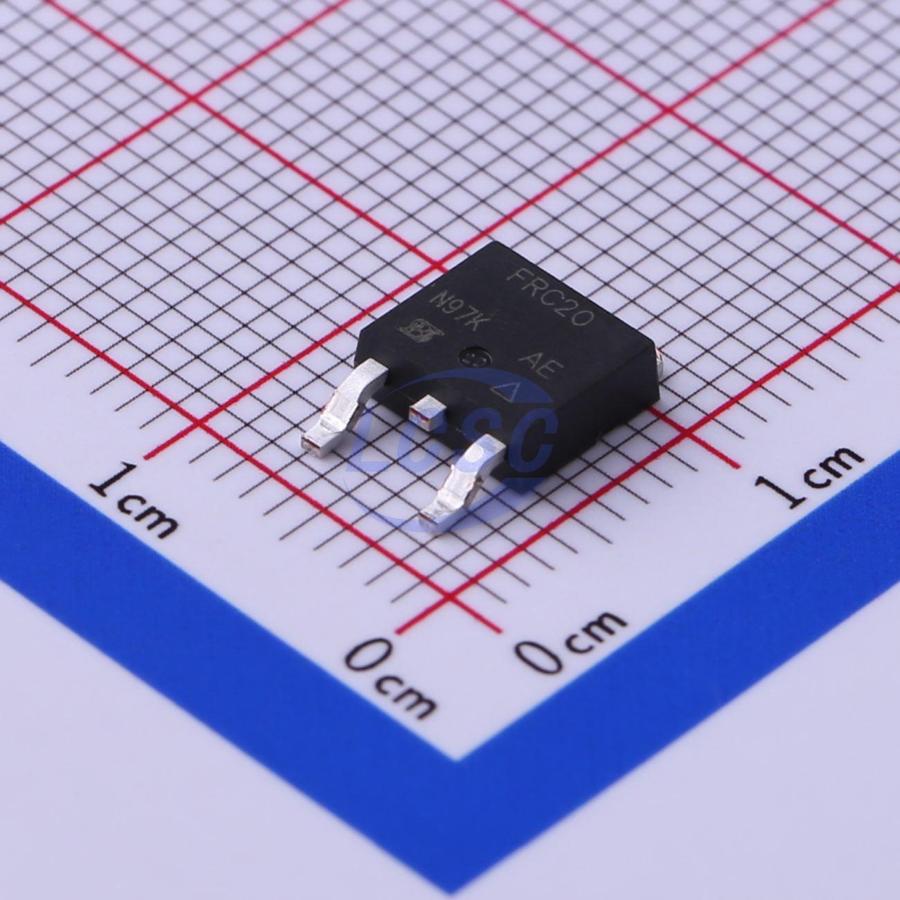

IRFRC20TRPBF
N-Channel 600V 1.3A 42W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET N-CH 600V 1.3A DPAK(TO-252)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFRC20TRPBF
- Store part #
- C466982
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,786 in stock
#C466982
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.78 | ₹111.78 |
| 10+ | ₹89.86 | ₹898.60 |
| 30+ | ₹79.01 | ₹2,370.30 |
| 100+ | ₹68.37 | ₹6,837.00 |
| 500+ | ₹61.86 | ₹30,930.00 |
| 1,000+ | ₹58.40 | ₹58,400.00 |
1 × ₹111.78
₹111.78
excl. GST
₹131.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRFRC20TRPBF
₹111.78 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 48pF
- Ciss-Input Capacitance
- 350pF
- Pd - Power Dissipation
- 42W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 1.3A
- Reverse Transfer Capacitance (Crss)
- 8.6pF
- RDS(on)
- 4.4Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.517 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFUC, SiHFUC series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- RoHS COMPLIANT
- Surface Mount (IRFRC20, SiHFRC20)
- Straight Lead (IRFUC20, SiHFUC20)
- HALOGEN FREE
- Available in Tape and Reel Available
- Fast Switching
- Ease of Paralleling
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFRC20PBF#C469334VISHAY · DPAK(TO-252) | VISHAY | DPAK(TO-252) | 706 | ₹176.00 · 706 in stock | View |
 | IRFRC20TRLPBF#C3022VISHAY · DPAK(TO-252) | VISHAY | DPAK(TO-252) | 28 | ₹131.69 · 28 in stock | View |
 | VBZE2N60#C700635VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 45 | ₹61.55 · 45 in stock | View |
 | SMD2N65#C570146HUAKE · TO-252 | HUAKE | TO-252 | 1,590 | ₹17.65 · 1,590 in stock | View |
 | 2N65 TO252-VB#C693227VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 122 | ₹72.90 · 122 in stock | View |
