InfineonDatasheet (PDF)

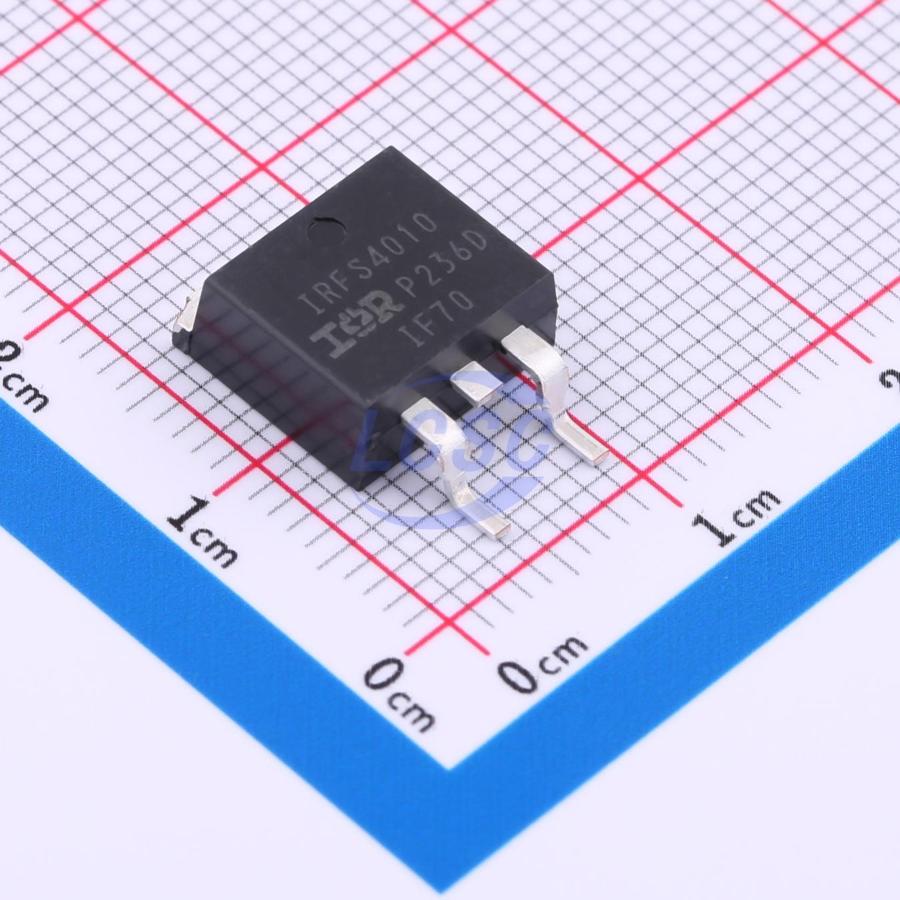

IRFS4010TRLPBF
N-Channel 100V 180A 375W Surface Mount D2PAK
D2PAKROHS3 CompliantActive
MOSFET N-CH 100V 180A D2PAK
- Manufacturer
- Infineon
- Manufacturer part #
- IRFS4010TRLPBF
- Store part #
- C538014
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
67 in stock
#C538014
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹353.16 | ₹353.16 |
| 10+ | ₹297.56 | ₹2,975.60 |
| 30+ | ₹262.59 | ₹7,877.70 |
| 100+ | ₹226.97 | ₹22,697.00 |
| 500+ | ₹210.90 | ₹1,05,450.00 |
| 800+ | ₹203.95 | ₹1,63,160.00 |
1 × ₹353.16
₹353.16
excl. GST
₹416.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRFS4010TRLPBF
₹353.16 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 660pF
- Current - Continuous Drain(Id)
- 180A
- Pd - Power Dissipation
- 375W
- RDS(on)
- 4.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 215nC
- Vgs
- ±20V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.11 g
Overview
Applications
- High Efficiency Synchronous Rectification in SMPS
- Uninterruptible Power Supply
- High Speed Power Switching
- Hard Switched and High Frequency Circuits
Key features
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dl/dt Capability
- Lead-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMB048N15#C51793148Cmos · TO-263 | Cmos | TO-263 | 32 | ₹177.15 · 32 in stock | View |
 | BSB10NH025SK1#C54906930Bestirpower · D2PAK | Bestirpower | D2PAK | 166 | ₹78.49 · 166 in stock | View |
| PSMN3R7-100BSEJ-VB#C52148623VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 3 | ₹282.57 · 3 in stock | View | |
| BUK965R8-100E,118-VB#C52190960VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹263.41 · 5 in stock | View | |
 | AOB66914L#C54582689HXY MOSFET · TO-263 | HXY MOSFET | TO-263 | 25 | ₹417.09 · 25 in stock | View |
