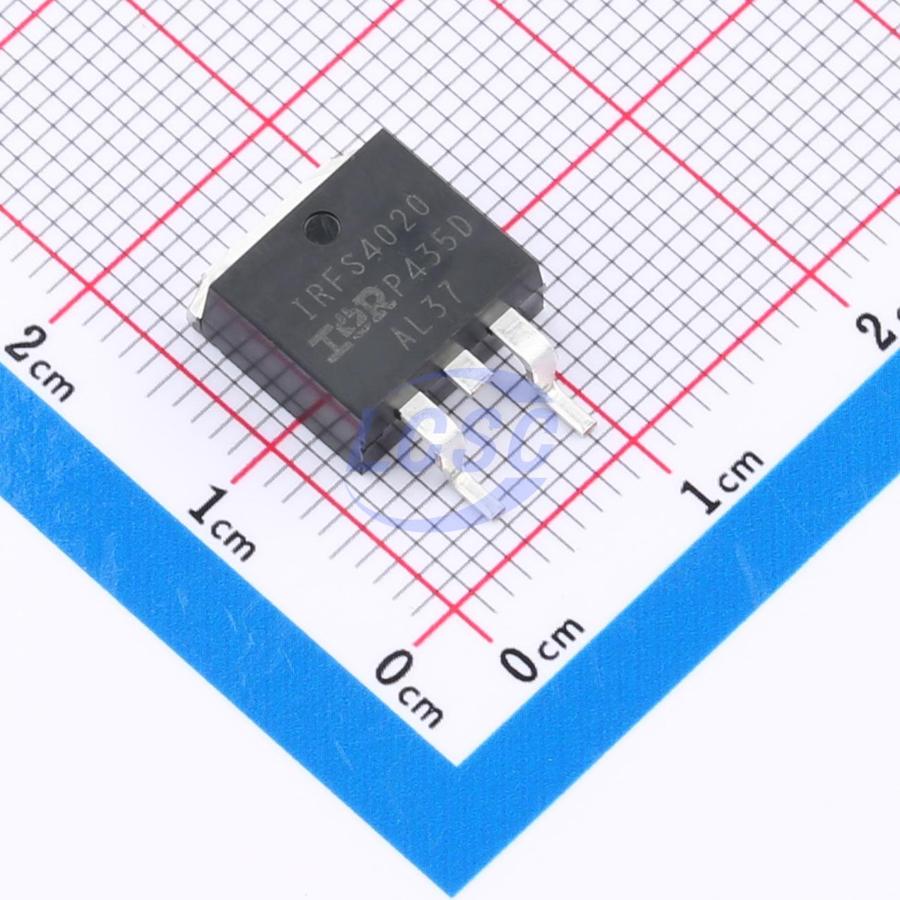

IRFS4020TRLPBF
N-Channel 200V 18A 100W Surface Mount D2PAK
D2PAKROHS CompliantDiscontinued
MOSFET N-CH 200V 18A D2PAK
- Manufacturer
- Infineon
- Manufacturer part #
- IRFS4020TRLPBF
- Store part #
- C538015
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C538015
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹174.49 | ₹174.49 |
| 10+ | ₹170.59 | ₹1,705.90 |
| 30+ | ₹167.98 | ₹5,039.40 |
| 100+ | ₹165.15 | ₹16,515.00 |
1 × ₹174.49
₹174.49
excl. GST
₹205.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRFS4020TRLPBF
₹174.49 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 91pF
- Current - Continuous Drain(Id)
- 18A
- Pd - Power Dissipation
- 100W
- RDS(on)
- 105mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 29nC@10V
- Vgs
- ±20V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
This Digital Audio MOSFET is specifically designed for Class-D audio amplifier applications. This MOSFET utilizes the latest processing techniques to achieve low on-resistance per silicon area. Furthermore, Gate charge, body-diode reverse recovery and internal Gate resistance are optimized to improve key Class-D audio amplifier performance factors such as efficiency, THD and EMl. Additional features of this MOSFET are 175°C operating junction temperature and repetitive avalanche capability. These features combine to make this MOSFET a highly efficient, robust and reliable device for ClassD audio amplifier applications.
Key features
- Key parameters optimized for Class-D audio amplifier applications
- Low Rpson for improved efficiency
- Low QG and QSW for better THD and improved efficiency
- Low QRR for better THD and lower EMI
- 175°C operating junction temperature for ruggedness
- Can deliver up to 300W per channel into 8Ω load in half-bridge configuration amplifier
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WSK26N20#C22751511Winsok Semicon · TO-263-2L | Winsok Semicon | TO-263-2L | 83 | ₹127.91 · 83 in stock | View |
 | IPB60R099C7ATMA1#C3279233Infineon · TO-263 | Infineon | TO-263 | 1 | ₹743.51 · 1 in stock | View |
 | IXFA36N30P3#C28144154Littelfuse/IXYS · TO-263AA | Littelfuse/IXYS | TO-263AA | 10 | ₹1,115.14 · 10 in stock | View |
| FQB19N20LTM#C605171onsemi · TO-263(D2PAK) | onsemi | TO-263(D2PAK) | 491 | ₹247.92 · 491 in stock | View | |
 | CMB18N20A#C5203925Cmos · TO-263 | Cmos | TO-263 | 5,258 | ₹63.80 · 5,258 in stock | View |
