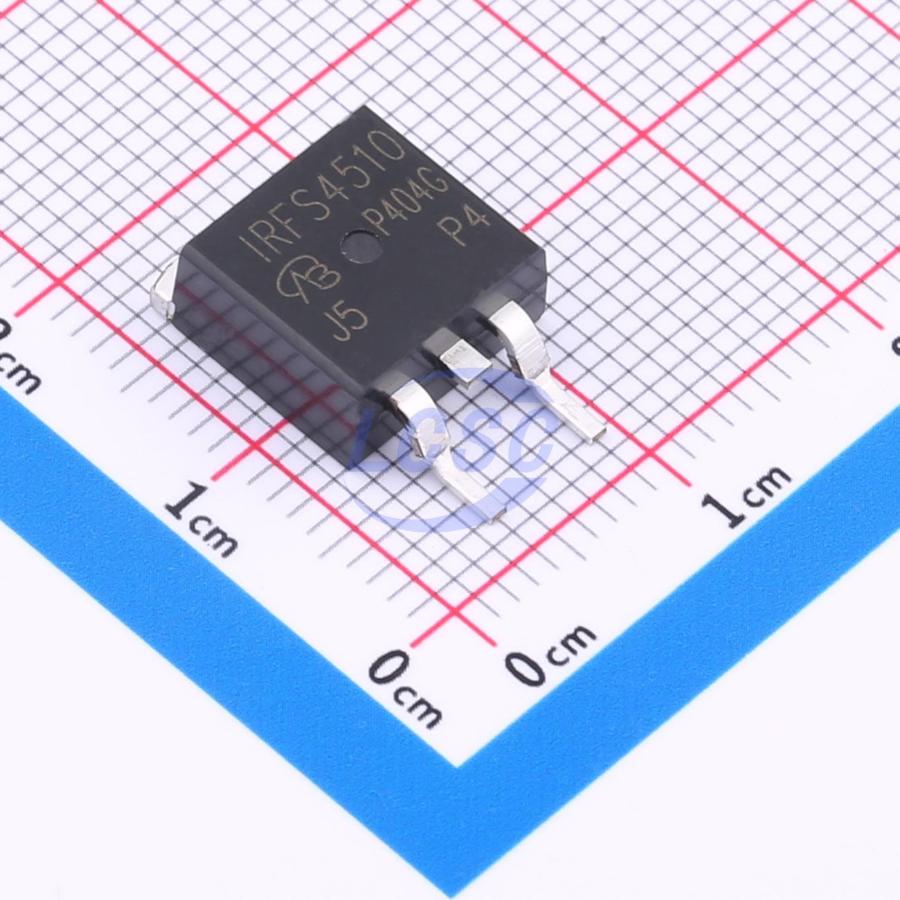

IRFS4510PBF-VB
N-Channel 100V 100A 250W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 100V 100A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFS4510PBF-VB
- Store part #
- C20626380
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C20626380
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.78 | ₹181.78 |
| 10+ | ₹156.31 | ₹1,563.10 |
| 30+ | ₹142.38 | ₹4,271.40 |
| 100+ | ₹98.40 | ₹9,840.00 |
| 500+ | ₹91.43 | ₹45,715.00 |
| 1,000+ | ₹88.18 | ₹88,180.00 |
1 × ₹181.78
₹181.78
excl. GST
₹214.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRFS4510PBF-VB
₹181.78 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 665pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 6.55nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 265pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 160nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.2 g
Overview
Key features
- TrenchFET Power MOSFET
- 175 °C Maximum Junction Temperature
- Compliant to RoHS Directive 2002/95/EC
- N-Channel MOSFET
