VISHAYDatasheet (PDF)

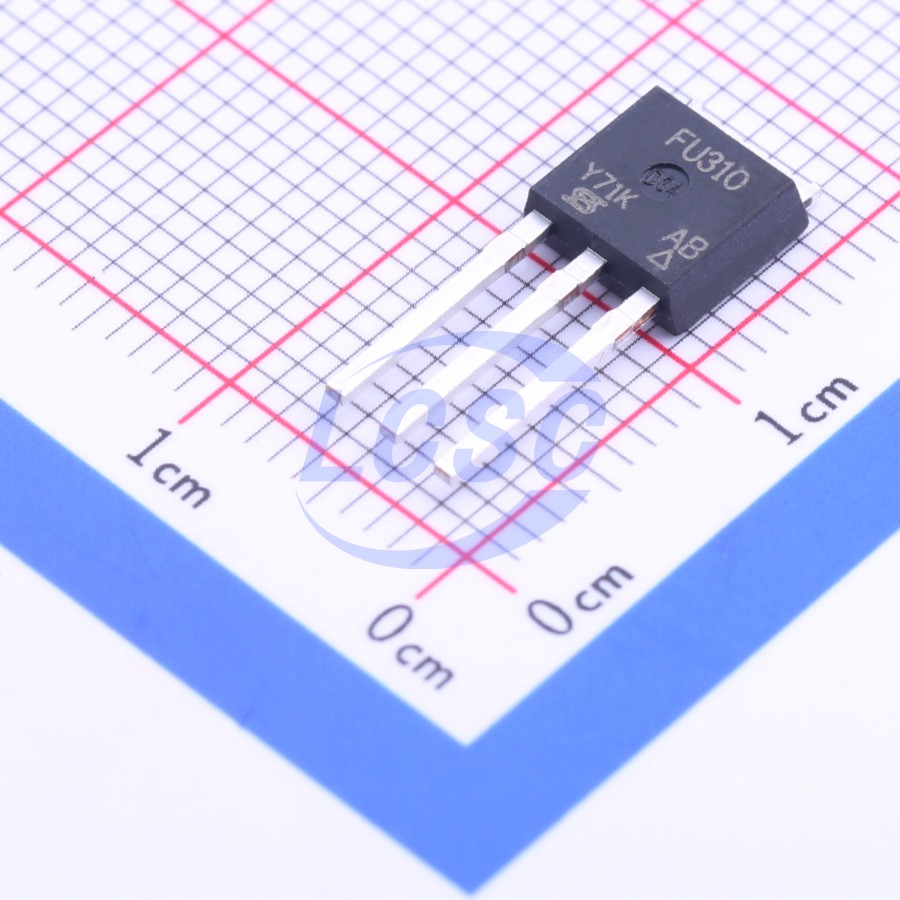

IRFU310PBF
N-Channel 400V 1.7A 25W Through Hole TO-251(IPAK)
TO-251(IPAK)ROHS3 CompliantActive
MOSFET N-CH 400V 1.7A TO-251(IPAK)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFU310PBF
- Store part #
- C142573
- Package / case
- TO-251(IPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C142573
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹604.74 | ₹604.74 |
| 10+ | ₹517.61 | ₹5,176.10 |
| 30+ | ₹465.67 | ₹13,970.10 |
| 100+ | ₹413.31 | ₹41,331.00 |
| 500+ | ₹389.19 | ₹1,94,595.00 |
| 1,000+ | ₹378.33 | ₹3,78,330.00 |
1 × ₹604.74
₹604.74
excl. GST
₹713.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
IRFU310PBF
₹604.74 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 34pF
- Ciss-Input Capacitance
- 170pF
- Pd - Power Dissipation
- 25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 400V
- Current - Continuous Drain(Id)
- 1.7A
- Reverse Transfer Capacitance (Crss)
- 6.3pF
- RDS(on)
- 3.6Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.92 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
Key features
- RoHS COMPLIANT HALOGEN FREE Available
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Surface Mount (IRFR310, SiHFR310)
- Straight Lead (IRFU310, SiHFU310)
- Available in Tape and Reel
- Fast Switching
- Fully Avalanche Rated
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | YFW2N65AMJ#C7499439YFW · TO-251 | YFW | TO-251 | 10 | ₹31.51 · 10 in stock | View |
 | SVF2N60RMJ#C601625Hangzhou Silan Microelectronics · TO-251 | Hangzhou Silan Microelectronics | TO-251 | 15 | ₹51.11 · 15 in stock | View |
 | STD3NK60Z-1-VB#C18212503VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 9 | ₹73.74 · 9 in stock | View |
 | IRFUC20PBF-VB#C18212538VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 45 | ₹70.16 · 45 in stock | View |
 | 1N60 TO251-VB#C18212569VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 5 | ₹73.74 · 5 in stock | View |
