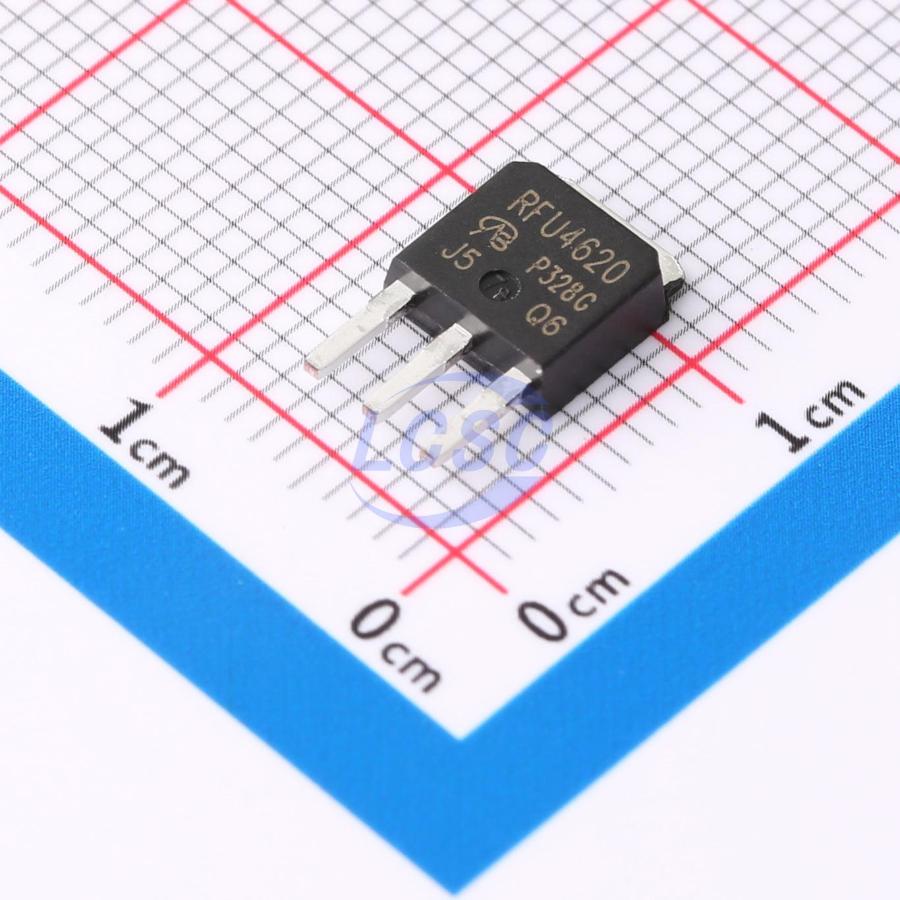

IRFU4620PBF-VB
N-Channel 200V 25A 145W Through Hole TO-251
TO-251ROHS CompliantActive
MOSFET N-CH 200V 25A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFU4620PBF-VB
- Store part #
- C7524926
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C7524926
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.22 | ₹214.22 |
| 10+ | ₹184.39 | ₹1,843.90 |
| 30+ | ₹167.85 | ₹5,035.50 |
| 80+ | ₹116.04 | ₹9,283.20 |
| 480+ | ₹107.76 | ₹51,724.80 |
| 960+ | ₹104.07 | ₹99,907.20 |
1 × ₹214.22
₹214.22
excl. GST
₹252.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
IRFU4620PBF-VB
₹214.22 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 280pF
- Current - Continuous Drain(Id)
- 25A
- Ciss-Input Capacitance
- 2.4nF
- Pd - Power Dissipation
- 145W
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 56mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 40nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.604 g
Overview
Applications
- Primary-side switch - N-channel MOSFET
Key features
- Trench power MOSFET
- Junction temperature 175°C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFU15N20DPBF-VB#C18794994VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 7 | ₹208.12 · 7 in stock | View |
 | IRFU4615PBF-VB#C5878816VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 30 | ₹172.76 · 30 in stock | View |
 | VBFB1208N#C480964VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 18 | ₹173.09 · 18 in stock | View |
 | IRFU24N15DPBF-VB#C19190215VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | On request | ₹193.11 · 0 in stock | View |
 | IRFU13N20DPBF-VB#C19711336VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | On request | ₹215.31 · 0 in stock | View |
