InfineonDatasheet (PDF)

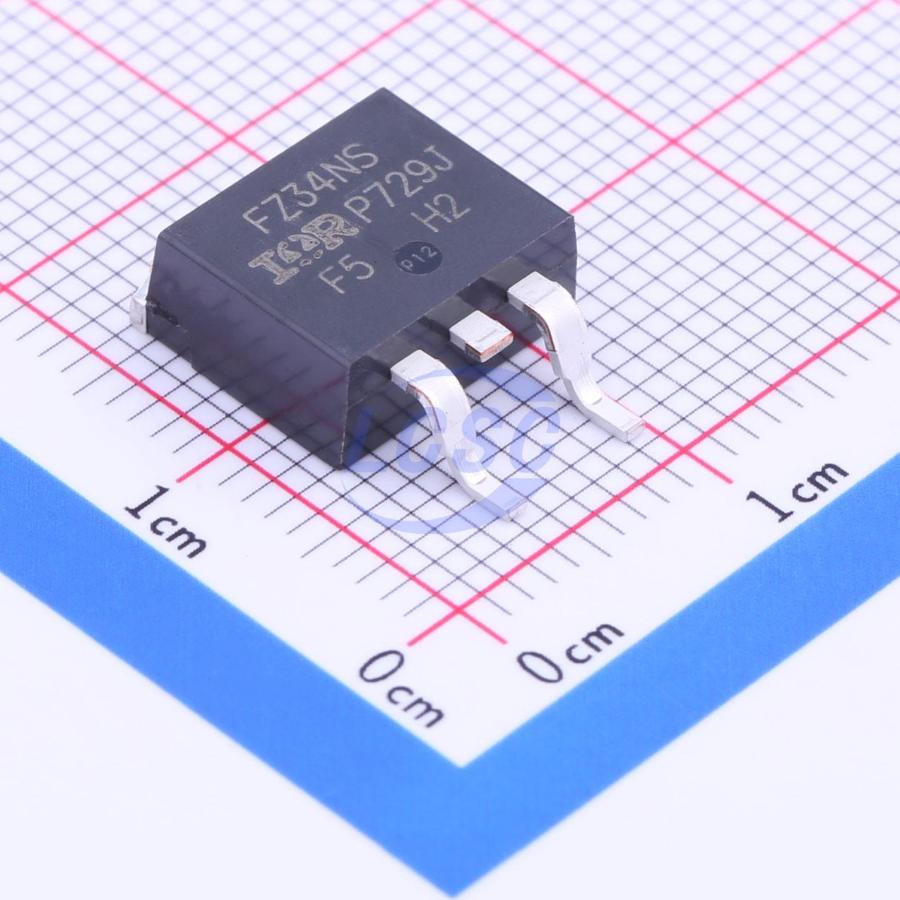

IRFZ34NSTRLPBF
N-Channel 55V 29A 3.8W Surface Mount D2PAK
D2PAKROHS3 CompliantActive
MOSFET N-CH 55V 29A D2PAK
- Manufacturer
- Infineon
- Manufacturer part #
- IRFZ34NSTRLPBF
- Store part #
- C74624
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C74624
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹173.26 | ₹173.26 |
| 10+ | ₹145.00 | ₹1,450.00 |
| 30+ | ₹129.34 | ₹3,880.20 |
| 100+ | ₹111.65 | ₹11,165.00 |
| 500+ | ₹103.92 | ₹51,960.00 |
| 800+ | ₹100.26 | ₹80,208.00 |
1 × ₹173.26
₹173.26
excl. GST
₹204.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRFZ34NSTRLPBF
₹173.26 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Output Capacitance(Coss)
- 240pF
- Current - Continuous Drain(Id)
- 29A
- Pd - Power Dissipation
- 3.8W
- RDS(on)
- 40mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC
- Vgs
- ±20V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.85 g
Overview
Fifth Generation HEXFETs utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D²Pak is a surface mount power package capable of accommodating die sizes up to HEX - 4. It provides the highest power capability and the lowest possible on - resistance in any existing surface mount package. The D²Pak is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2.0 W in a typical surface mount application. The through - hole version (IRFZ34NL) is available for low - profile applications.
Key features
- Advanced Process Technology
- Surface Mount (IRFZ34NS)
- Low - profile through - hole (IRFZ34NL)
- 175°C Operating Temperature
- Fast Switching
- Fully Avalanche Rated
- Lead - Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB50CN10NG-VB#C22389650VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 8 | ₹123.52 · 8 in stock | View |
 | STB35NF10T4-VB#C20417737VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹128.56 · 50 in stock | View |
 | 2SK2789(TE24L)-VB#C29778767VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 90 | ₹147.61 · 90 in stock | View |
 | CEB540L-VB#C29779277VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹123.52 · 10 in stock | View |
 | FQB33N10TM-VB#C29779294VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 9 | ₹123.52 · 9 in stock | View |
