InfineonDatasheet (PDF)

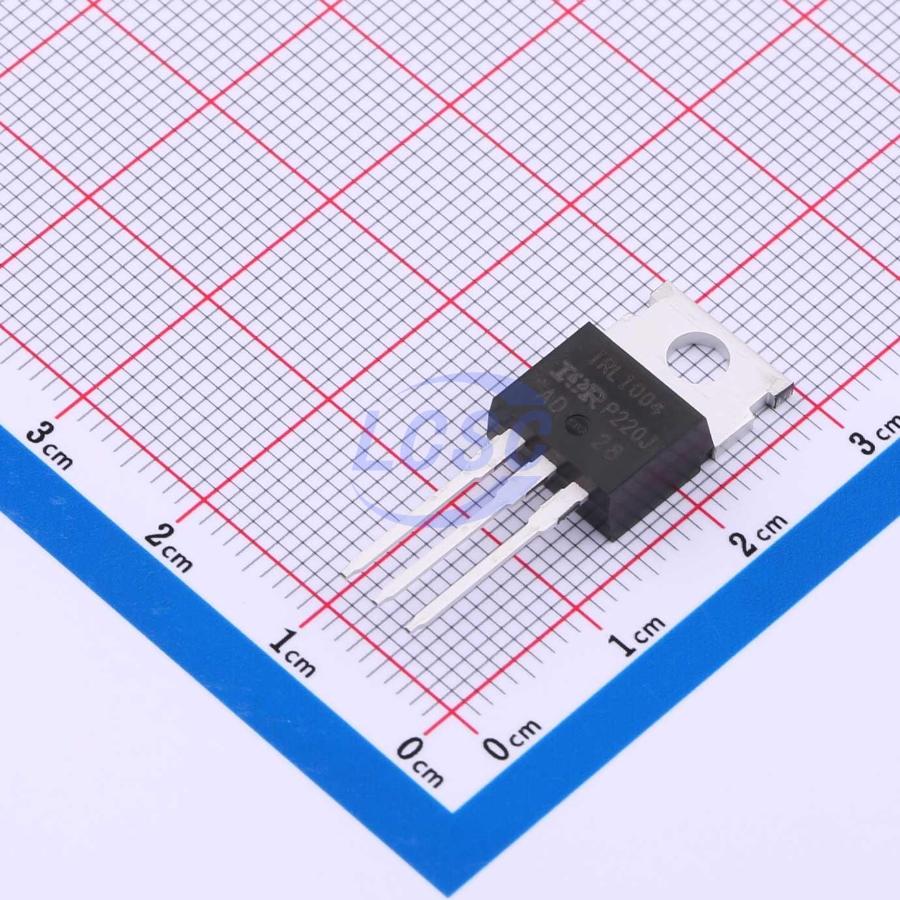

IRL1004PBF
N-Channel 40V 130A 200W Through Hole TO-220AB
TO-220ABROHS3 CompliantDiscontinued
MOSFET N-CH 40V 130A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRL1004PBF
- Store part #
- C538105
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C538105
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹324.02 | ₹324.02 |
| 10+ | ₹277.10 | ₹2,771.00 |
| 50+ | ₹247.57 | ₹12,378.50 |
| 100+ | ₹217.41 | ₹21,741.00 |
| 500+ | ₹203.79 | ₹1,01,895.00 |
| 1,000+ | ₹197.72 | ₹1,97,720.00 |
1 × ₹324.02
₹324.02
excl. GST
₹382.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRL1004PBF
₹324.02 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 130A
- Ciss-Input Capacitance
- 5.33nF
- Pd - Power Dissipation
- 200W
- Reverse Transfer Capacitance (Crss)
- 320pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 100nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.82 g
Overview
Fifth Generation HEXFET power MOSFETs utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
Key features
- Logic level gate drive
- Advanced process technology
- Ultra-low on-resistance
- Dynamic dv/dt rating
- 175°C operating temperature
- Fast switching
- Fully avalanche rated
- Lead-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMP220N04#C41410541Cmos · TO-220 | Cmos | TO-220 | 50 | ₹101.82 · 50 in stock | View |
 | HYG020N04NR1P#C5121330HUAYI · TO-220FB-3L | HUAYI | TO-220FB-3L | 194 | ₹79.31 · 194 in stock | View |
 | RS40N150T#C22364780REASUNOS · TO-220 | REASUNOS | TO-220 | 420 | ₹55.30 · 420 in stock | View |
 | WSR130N06#C5242065Winsok Semicon · TO-220AB | Winsok Semicon | TO-220AB | 58 | ₹113.87 · 58 in stock | View |
 | WSR180N15#C20608584Winsok Semicon · TO-220 | Winsok Semicon | TO-220 | 4 | ₹287.36 · 4 in stock | View |
