VBsemi ElecDatasheet (PDF)

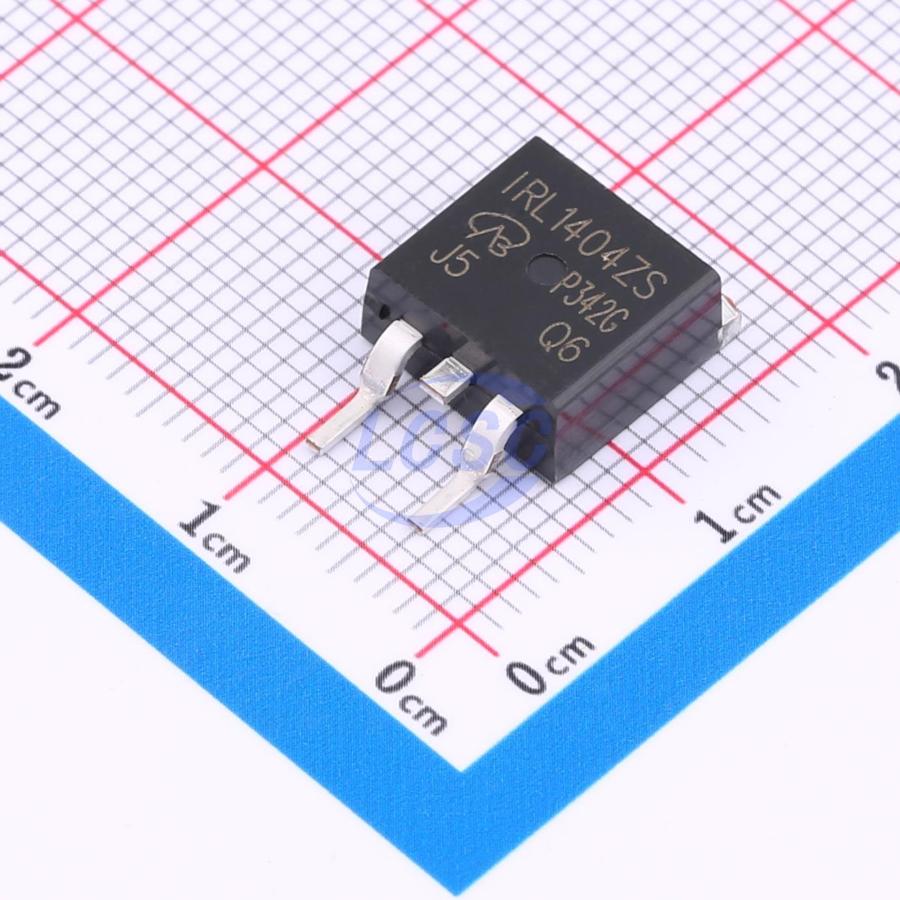

IRL1404ZSPBF-VB
N-Channel 40V 150A 312W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 40V 150A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRL1404ZSPBF-VB
- Store part #
- C20417517
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C20417517
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹263.70 | ₹263.70 |
| 10+ | ₹229.38 | ₹2,293.80 |
| 50+ | ₹152.93 | ₹7,646.50 |
| 100+ | ₹131.41 | ₹13,141.00 |
| 500+ | ₹121.86 | ₹60,930.00 |
| 1,000+ | ₹117.73 | ₹1,17,730.00 |
1 × ₹263.70
₹263.70
excl. GST
₹311.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRL1404ZSPBF-VB
₹263.70 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 650pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 9nF
- Pd - Power Dissipation
- 312W
- Reverse Transfer Capacitance (Crss)
- 450pF
- RDS(on)
- 1.7mΩ@10V;2.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.45 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 270N4F3 TO263-VB#C20417636VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 8 | ₹201.03 · 8 in stock | View |
 | 270N4F3-VB TO263#C29778746VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹192.84 · 10 in stock | View |
 | IRF1404SPBF-VB#C19711246VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 14 | ₹201.03 · 14 in stock | View |
 | SUM90N04-3M3P-VB#C19711292VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹232.94 · 50 in stock | View |
 | PSMN1R1-40BS-VB#C20755251VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹201.03 · 10 in stock | View |
