VBsemi ElecDatasheet (PDF)

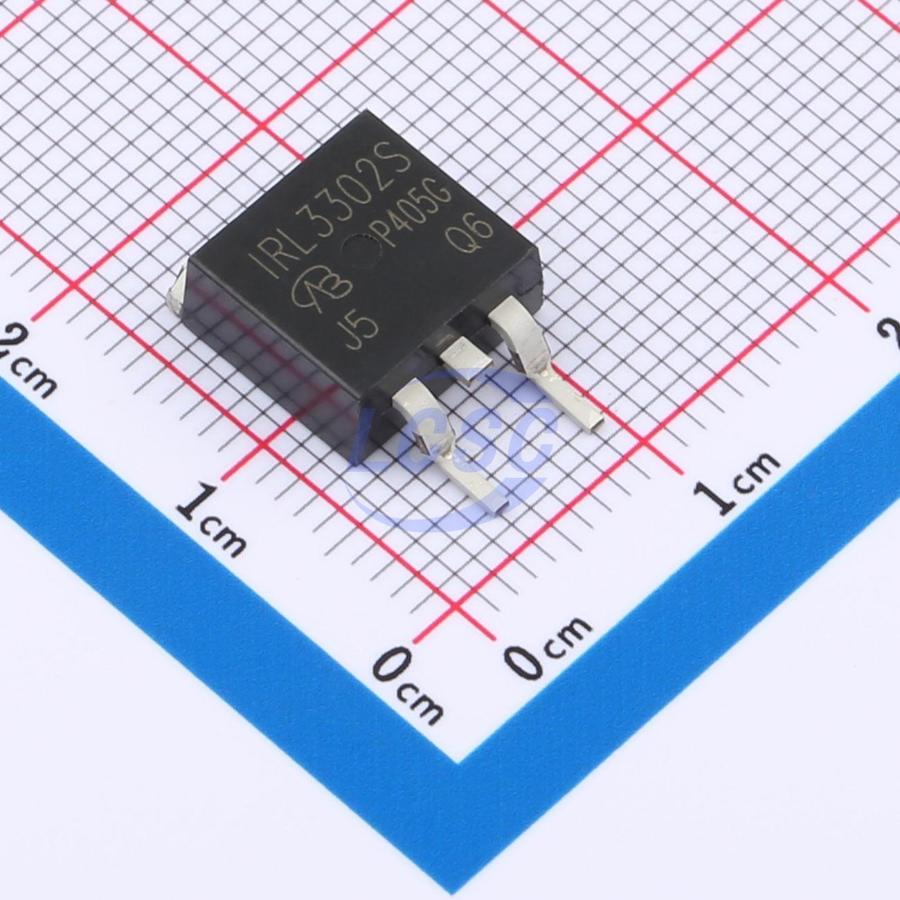

IRL3302SPBF-VB
N-Channel 20V 85A 120W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 20V 85A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRL3302SPBF-VB
- Store part #
- C22389320
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389320
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.62 | ₹75.62 |
| 10+ | ₹60.92 | ₹609.20 |
| 50+ | ₹53.57 | ₹2,678.50 |
| 100+ | ₹46.21 | ₹4,621.00 |
| 500+ | ₹41.81 | ₹20,905.00 |
| 1,000+ | ₹39.49 | ₹39,490.00 |
1 × ₹75.62
₹75.62
excl. GST
₹89.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRL3302SPBF-VB
₹75.62 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 85A
- Output Capacitance(Coss)
- 1.15nF
- Ciss-Input Capacitance
- 6.6nF
- Pd - Power Dissipation
- 120W
- Reverse Transfer Capacitance (Crss)
- 600pF
- RDS(on)
- 6mΩ@4.5V;9mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 65nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
Applications
- OR gate applications
- Servers
- DC-DC converters
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
