VBsemi ElecDatasheet (PDF)

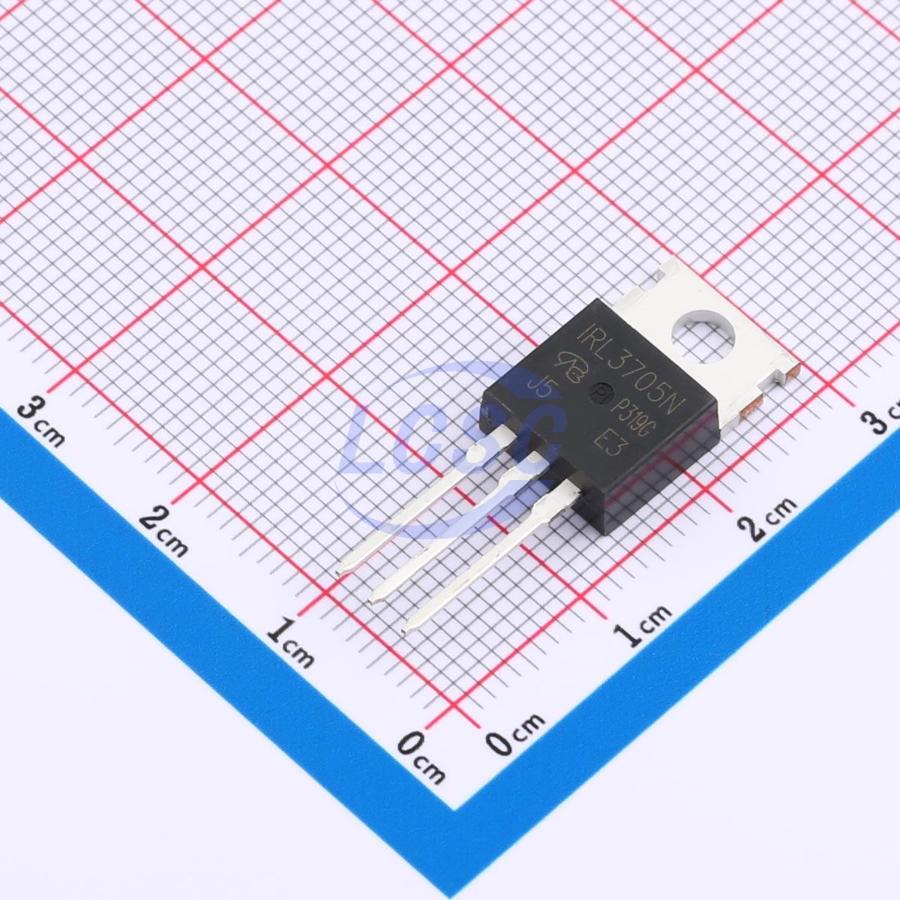

IRL3705NPBF-VB
N-Channel 60V 50A 136W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 60V 50A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRL3705NPBF-VB
- Store part #
- C7463461
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C7463461
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.59 | ₹137.59 |
| 10+ | ₹116.69 | ₹1,166.90 |
| 50+ | ₹79.90 | ₹3,995.00 |
| 100+ | ₹69.67 | ₹6,967.00 |
| 500+ | ₹63.36 | ₹31,680.00 |
| 1,000+ | ₹60.30 | ₹60,300.00 |
1 × ₹137.59
₹137.59
excl. GST
₹162.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRL3705NPBF-VB
₹137.59 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 570pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 4.2nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.4 g
Overview
Applications
- Load switch
Key features
- 175°C Junction Temperature TrenchFET Power MOSFET
- N-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HUF75332P3-VB#C29778821VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹102.93 · 10 in stock | View |
 | BUK7510-55AL127-VB#C52191093VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹121.70 · 5 in stock | View |
 | STP60NF06-VB#C7429128VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 102 | ₹139.07 · 102 in stock | View |
 | IPP120N06NG-VB#C878811VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 22 | ₹93.42 · 22 in stock | View |
 | CMP70N06-VB#C5179529VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 15 | ₹130.84 · 15 in stock | View |
