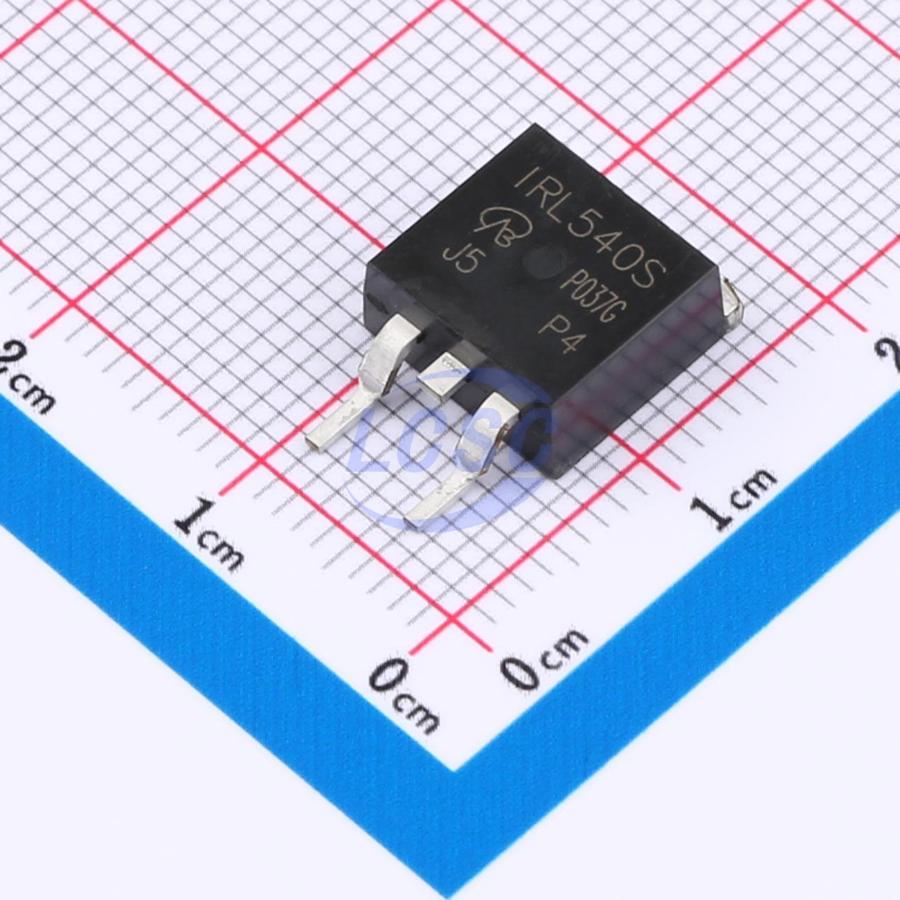

IRL540STRLPBF-VB
N-Channel 100V 45A 127W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 100V 45A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRL540STRLPBF-VB
- Store part #
- C5878819
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C5878819
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.46 | ₹156.46 |
| 10+ | ₹131.69 | ₹1,316.90 |
| 30+ | ₹119.31 | ₹3,579.30 |
| 100+ | ₹78.02 | ₹7,802.00 |
| 500+ | ₹70.62 | ₹35,310.00 |
| 1,000+ | ₹66.93 | ₹66,930.00 |
1 × ₹156.46
₹156.46
excl. GST
₹184.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRL540STRLPBF-VB
₹156.46 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 410pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 3.1nF
- Pd - Power Dissipation
- 127W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.357 g
Overview
Applications
- Primary-side switch
- Isolated DC/DC converter
Key features
- Trench power MOSFET
- 175°C junction temperature
- Low thermal resistance package
- RoHS compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PSMN034-100BS-VB#C18794931VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹128.56 · 20 in stock | View |
 | H7N1004LS-VB#C19632228VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹128.56 · 20 in stock | View |
 | HUF76633S3ST-VB#C20755032VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹128.56 · 20 in stock | View |
 | IPB79CN10N G-VB#C22389920VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹123.52 · 10 in stock | View |
 | FDB3682-VB#C2680876VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 12 | ₹128.19 · 12 in stock | View |
