VISHAYDatasheet (PDF)

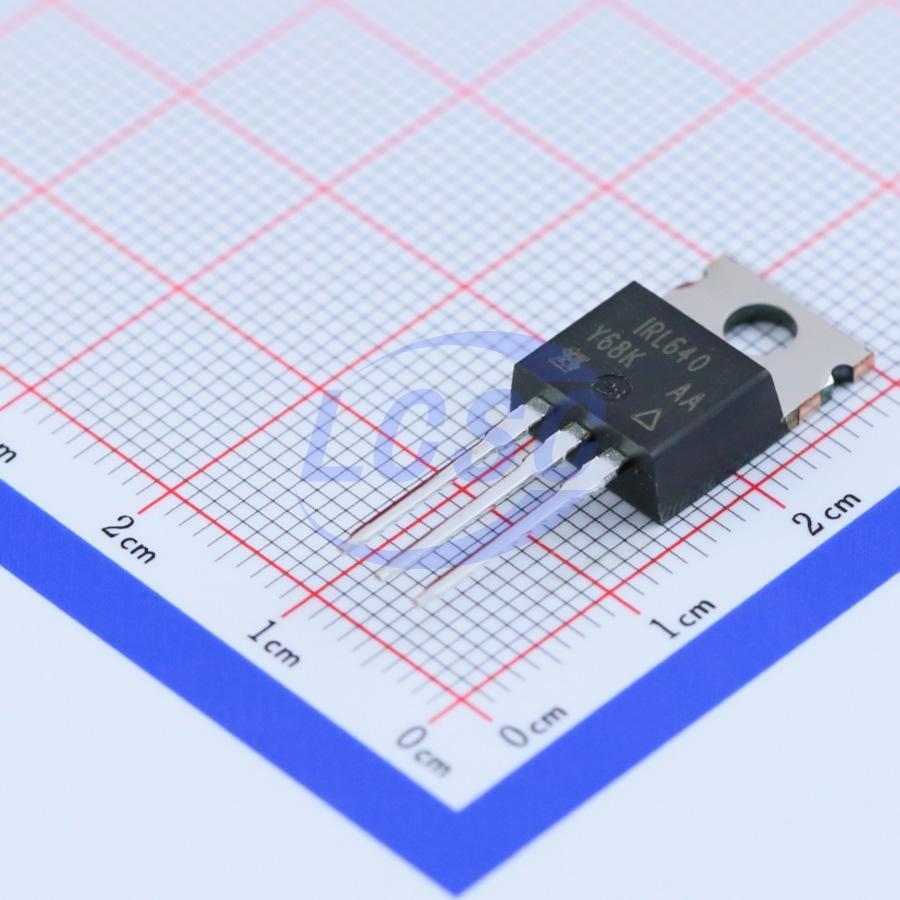

IRL640PBF
N-Channel 200V 17A 125W Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 200V 17A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRL640PBF
- Store part #
- C110552
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C110552
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹233.40 | ₹233.40 |
| 10+ | ₹195.45 | ₹1,954.50 |
| 50+ | ₹157.05 | ₹7,852.50 |
| 100+ | ₹133.41 | ₹13,341.00 |
| 500+ | ₹123.00 | ₹61,500.00 |
| 1,000+ | ₹118.22 | ₹1,18,220.00 |
1 × ₹233.40
₹233.40
excl. GST
₹275.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRL640PBF
₹233.40 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 400pF
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 17A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 270mΩ@4V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66nC@5V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.5 g
Overview
Third generation power MOSFETs provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Key features
- Dynamic dV/dt rating
- Repetitive avalanche rated Available
- Logic-level gate drive RoHS
- RDS(on) specified at VGS = 4 V and 5 V Available
- Fast switching
- Ease of paralleling
- Simple drive requirements
