InfineonDatasheet (PDF)

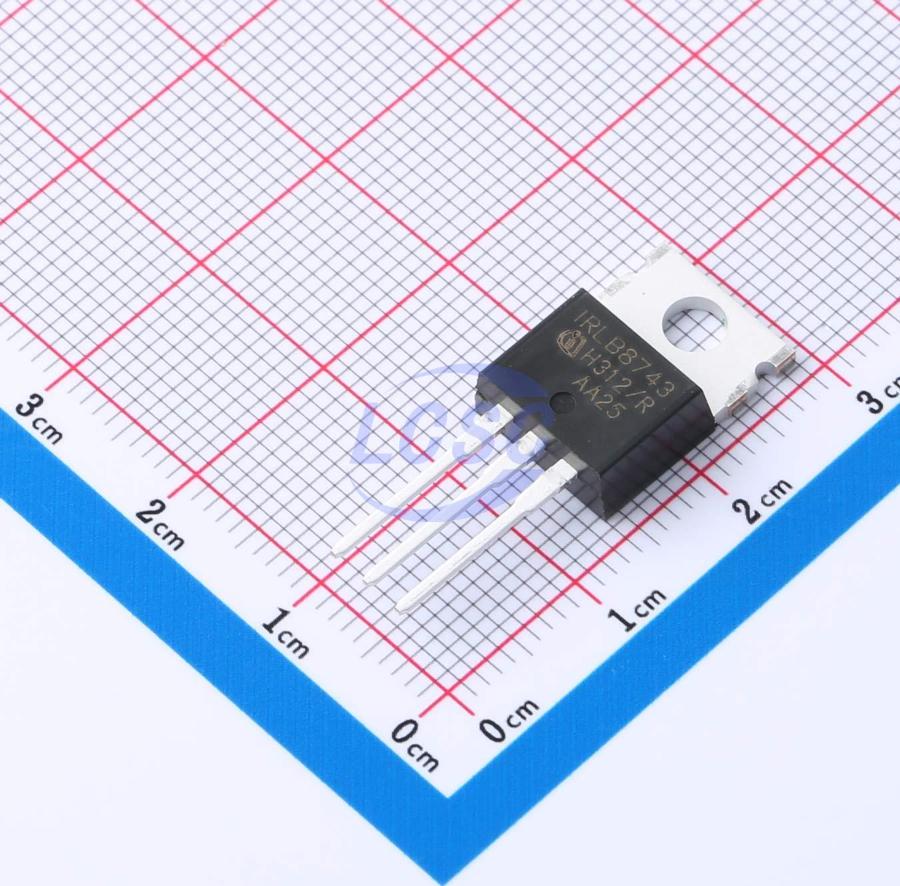

IRLB8743PBF
N-Channel 30V 150A 140W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 30V 150A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRLB8743PBF
- Store part #
- C219748
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
104 in stock
#C219748
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹208.80 | ₹208.80 |
| 10+ | ₹171.73 | ₹1,717.30 |
| 50+ | ₹151.34 | ₹7,567.00 |
| 100+ | ₹128.15 | ₹12,815.00 |
| 500+ | ₹117.96 | ₹58,980.00 |
| 1,000+ | ₹113.39 | ₹1,13,390.00 |
1 × ₹208.80
₹208.80
excl. GST
₹246.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRLB8743PBF
₹208.80 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 960pF
- Ciss-Input Capacitance
- 5.11nF
- Pd - Power Dissipation
- 140W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 150A
- Reverse Transfer Capacitance (Crss)
- 440pF
- RDS(on)
- 3.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 54nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.35V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.66 g
Overview
Applications
- Optimized for UPS/Inverter Applications
- High Frequency Synchronous Buck Converters for Computer Processor Power
- High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial use
Key features
- Very Low RDS(on) at 4.5V VGS
- Ultra-Low Gate Impedance
- Fully Characterized Avalanche Voltage and Current
- Lead-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLB4132PBF#C212021Infineon · TO-220AB | Infineon | TO-220AB | 448 | ₹97.13 · 448 in stock | View |
 | HSP3018B#C701024HUASHUO · TO-220FB-3L | HUASHUO | TO-220FB-3L | 41 | ₹75.19 · 41 in stock | View |
| STP200N3LL#C2971658ST · TO-220-3 | ST | TO-220-3 | 40 | ₹254.49 · 40 in stock | View | |
 | OSP160N03T#C22458654OSEN · TO-220AB | OSEN | TO-220AB | 786 | ₹58.20 · 786 in stock | View |
 | HYG023N04LS1P#C2895306HUAYI · TO-220FB | HUAYI | TO-220FB | 87 | ₹78.02 · 87 in stock | View |
