VBsemi ElecDatasheet (PDF)

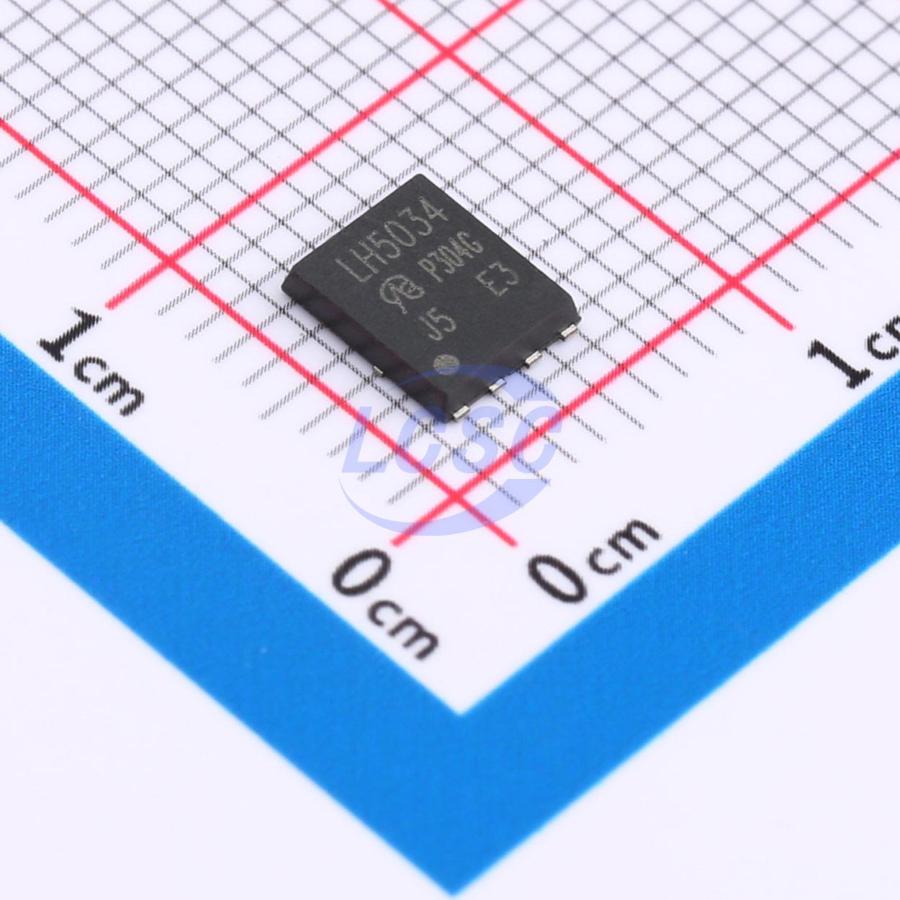

IRLH5034TRPBF-VB
N-Channel 40V 80A 5.4W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 40V 80A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLH5034TRPBF-VB
- Store part #
- C7463905
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C7463905
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹198.29 | ₹198.29 |
| 10+ | ₹165.11 | ₹1,651.10 |
| 30+ | ₹146.63 | ₹4,398.90 |
| 100+ | ₹126.04 | ₹12,604.00 |
| 500+ | ₹116.79 | ₹58,395.00 |
| 1,000+ | ₹112.60 | ₹1,12,600.00 |
1 × ₹198.29
₹198.29
excl. GST
₹233.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IRLH5034TRPBF-VB
₹198.29 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 610pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 4.75nF
- Pd - Power Dissipation
- 5.4W
- Reverse Transfer Capacitance (Crss)
- 275pF
- RDS(on)
- 2.5mΩ@10V;2.8mΩ@6.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Applications
- Synchronous rectification
- Secondary-side DC/DC conversion
- N-channel MOSFET
Key features
- Compliant with IEC 61249-2-21 halogen-free requirements
- Trench power MOSFET
- 100% gate resistance (Rg) testing
- 100% unclamped inductive switching (UIS) testing
- RoHS compliant
