VBsemi ElecDatasheet (PDF)

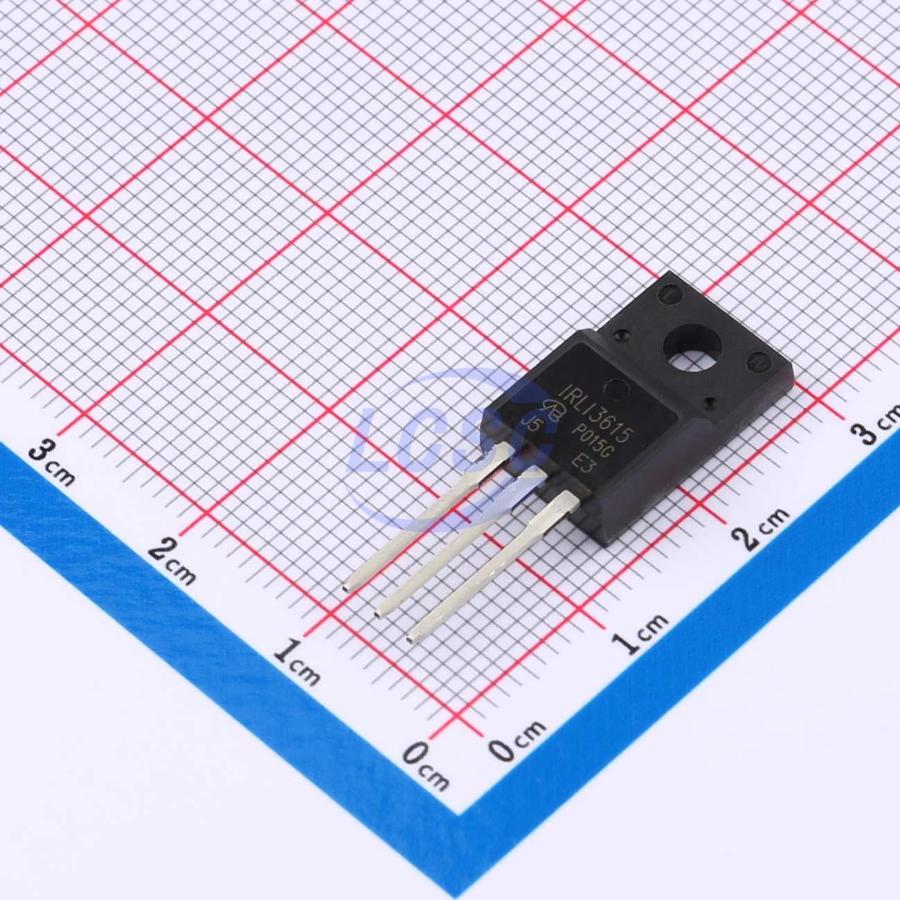

IRLI3615PBF-VB
N-Channel 200V 20A 42W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 200V 20A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLI3615PBF-VB
- Store part #
- C5456572
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C5456572
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹218.45 | ₹218.45 |
| 10+ | ₹185.91 | ₹1,859.10 |
| 50+ | ₹165.32 | ₹8,266.00 |
| 100+ | ₹144.52 | ₹14,452.00 |
| 500+ | ₹135.07 | ₹67,535.00 |
| 1,000+ | ₹131.08 | ₹1,31,080.00 |
1 × ₹218.45
₹218.45
excl. GST
₹257.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRLI3615PBF-VB
₹218.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 430pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 42W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 58mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.765 g
Overview
Applications
- Notebook system power supply
- Low-current DC/DC
Key features
- Halogen-free According to IEC 61249-2- Definition
- Surface Mount
- Low-Profile Through-Hole
- Available in Tape and Reel
- Dynamic dV/dt Rating
- 150 °C Operating Temperature
- Fast Switching
- Fully Avalanche Rated
- Compliant to RoHS Directive 2002/95/EC
