TECH PUBLICDatasheet (PDF)

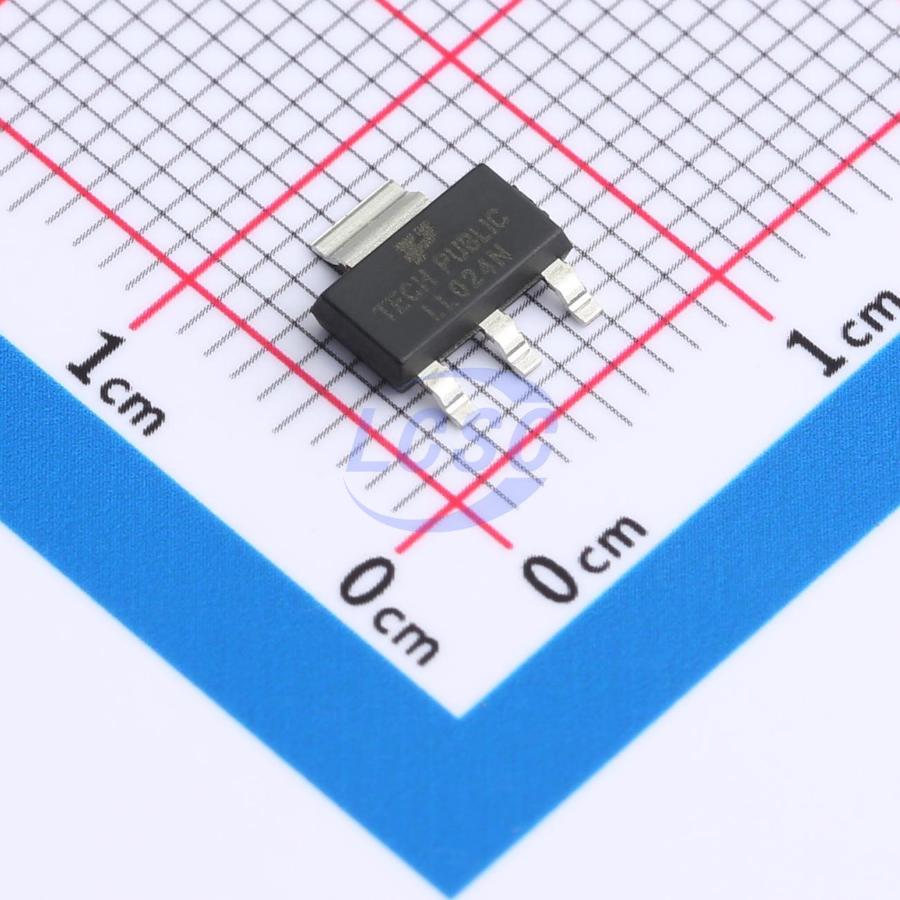

IRLL024NTRPBF-TP
N-Channel 60V 4A 3W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET N-CH 60V 4A SOT-223
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRLL024NTRPBF-TP
- Store part #
- C41407977
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,885 in stock
#C41407977
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.87 | ₹244.35 |
| 50+ | ₹38.63 | ₹1,931.50 |
| 150+ | ₹34.25 | ₹5,137.50 |
| 500+ | ₹28.78 | ₹14,390.00 |
| 2,500+ | ₹26.33 | ₹65,825.00 |
| 5,000+ | ₹24.87 | ₹1,24,350.00 |
5 × ₹48.87
₹244.35
excl. GST
₹288.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRLL024NTRPBF-TP
₹244.35 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 530pF
- Pd - Power Dissipation
- 3W
- RDS(on)
- 100mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.224 g
Overview
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- 60V, 4A, RDS(ON)=85mΩ @vGS=10V
- RDS(ON)=100mΩ ⨂ VGS=4.5V
- High dense cell design for extremely low RDS(ON)
- Rugged and reliable
- Lead free product is acquired
- SOT-223 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLL014NTRPBF-TP#C41407976TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,565 | ₹36.01 · 2,565 in stock | View |
 | NDT3055L#C7472932TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 10,785 | ₹23.38 · 10,785 in stock | View |
 | NTF3055L108T1G#C7472933TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 5,335 | ₹37.80 · 5,335 in stock | View |
 | STN3NF06L#C7472935TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 1,820 | ₹31.65 · 1,820 in stock | View |
 | TPM604NY3#C7472936TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 4,990 | ₹36.85 · 4,990 in stock | View |
