TECH PUBLICDatasheet (PDF)

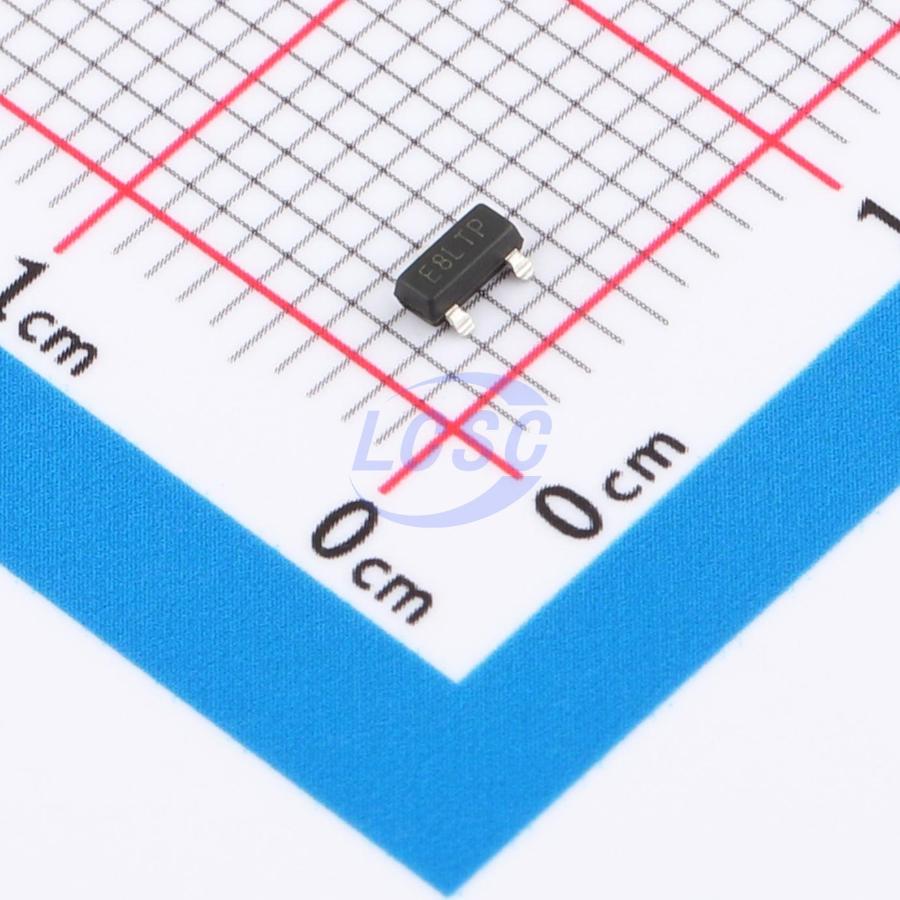

IRLML6402TRPBF-TP
1.7W 20V 4.1A 39mΩ@4.5V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRLML6402TRPBF-TP
- Store part #
- C52205420
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,280 in stock
#C52205420
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.42 | ₹54.20 |
| 100+ | ₹4.27 | ₹427.00 |
| 300+ | ₹3.70 | ₹1,110.00 |
| 3,000+ | ₹3.27 | ₹9,810.00 |
| 6,000+ | ₹2.92 | ₹17,520.00 |
| 9,000+ | ₹2.75 | ₹24,750.00 |
10 × ₹5.42
₹54.20
excl. GST
₹63.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRLML6402TRPBF-TP
₹54.20 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 740pF
- Pd - Power Dissipation
- 1.7W
- Drain to Source Voltage
- 20V
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4.1A
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 39mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7.8nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
Applications
- Load/power switch
- Interface switch
- Logic level translation
Key features
- Advanced trench technology
- Excellent RDS(ON) and low gate charge
- Lead-free compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP2120U#C5122017TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,340 | ₹11.74 · 2,340 in stock | View |
 | TPM9305PS3-3#C5122064TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,000 | ₹6.05 · 1,000 in stock | View |
 | SI2305ADS#C5182096TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,370 | ₹11.15 · 1,370 in stock | View |
 | TPSTR2P3LLH6#C5246394TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,380 | ₹10.09 · 1,380 in stock | View |
 | DMP2123L#C28646339TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 155 | ₹5.78 · 155 in stock | View |
