InfineonDatasheet (PDF)

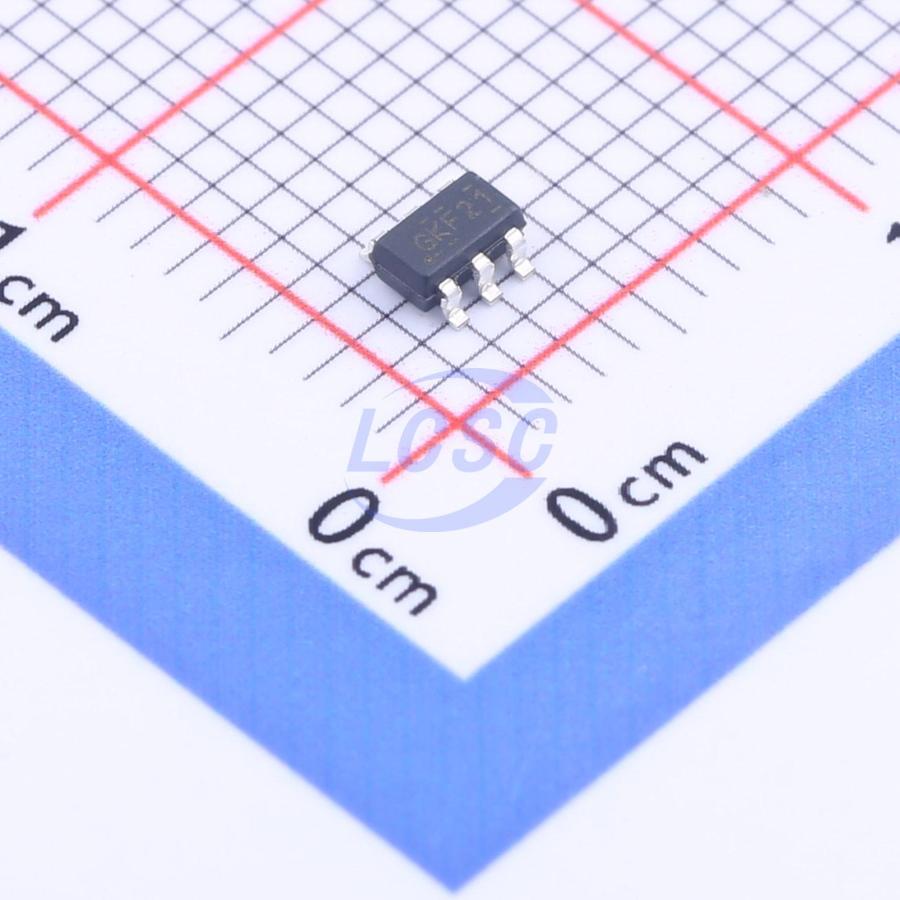

IRLMS2002TRPBF
N-Channel 20V 6.5A 2W Surface Mount SOT-23-6L
SOT-23-6LROHS3 CompliantActive
MOSFET N-CH 20V 6.5A SOT-23-6L
- Manufacturer
- Infineon
- Manufacturer part #
- IRLMS2002TRPBF
- Store part #
- C142374
- Package / case
- SOT-23-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C142374
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.70 | ₹111.70 |
| 10+ | ₹91.05 | ₹910.50 |
| 30+ | ₹80.62 | ₹2,418.60 |
| 100+ | ₹70.41 | ₹7,041.00 |
| 500+ | ₹62.37 | ₹31,185.00 |
| 1,000+ | ₹59.11 | ₹59,110.00 |
1 × ₹111.70
₹111.70
excl. GST
₹131.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRLMS2002TRPBF
₹111.70 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 150pF
- Ciss-Input Capacitance
- 1.31nF
- Pd - Power Dissipation
- 2W
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 6.5A
- Reverse Transfer Capacitance (Crss)
- 36pF
- RDS(on)
- 30mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC@5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.049 g
Overview
These N-Channel MOSFETs utilize advanced processing techniques to achieve the extremely low on-resistance per silicon area. This benefit provides the designer with an extremely efficient device for use in battery and load management applications. The Micro6™ package with its customized leadframe produces a HEXFET power MOSFET with RDS(on) 60% less than a similar size SOT-23. This package is ideal for applications where printed circuit board space is at a premium. It's unique thermal design and RDS(on) reduction enables a current-handling increase of nearly 300% compared to the SOT-23.
Key features
- Ultra-low on-resistance
- Surface mount
- Tape and reel packaging available
- 2.5V rated voltage
- Lead-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM20V7NLS6-1#C5182101TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,000 | ₹21.60 · 1,000 in stock | View |
 | TPM20V7NLS6-2#C5182102TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 984 | ₹21.60 · 984 in stock | View |
 | BSL202SNH6327#C3279331Infineon · TSOP-6 | Infineon | TSOP-6 | 2,509 | ₹56.85 · 2,509 in stock | View |
 | IRLMS2002TRPBF#C5123957TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,435 | ₹19.20 · 3,435 in stock | View |
 | TPM20V7NLS6#C5182100TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,715 | ₹17.11 · 2,715 in stock | View |
