VBsemi ElecDatasheet (PDF)

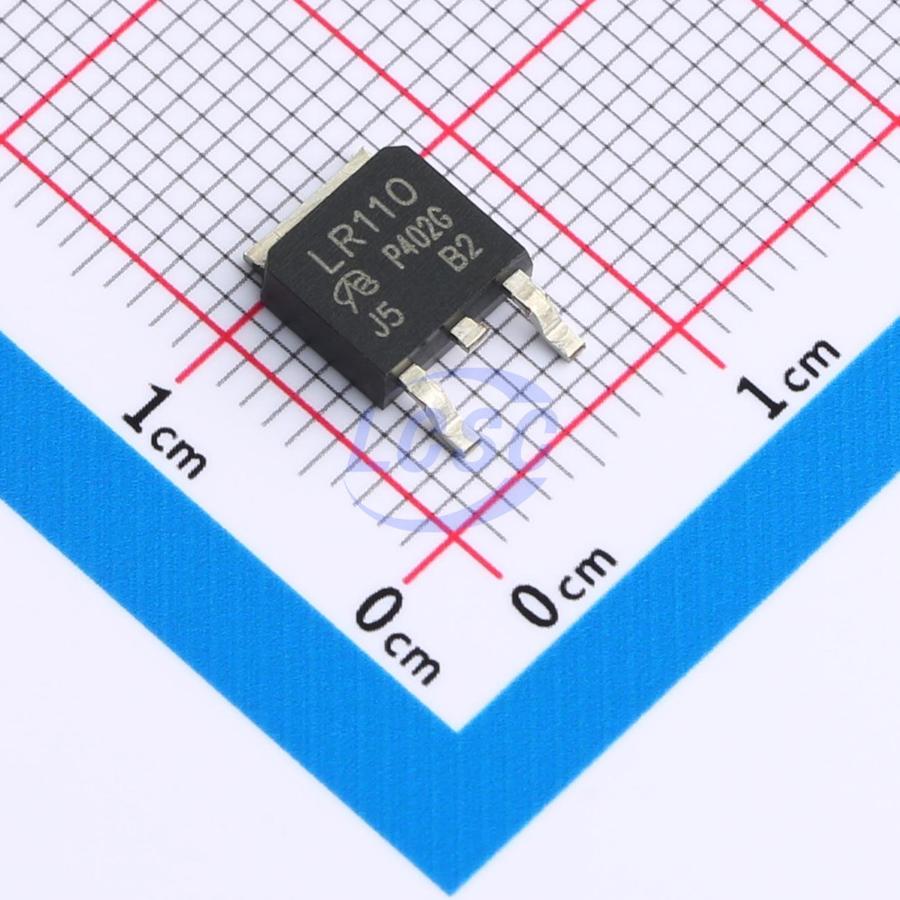

IRLR110TRPBF-VB
N-Channel 100V 15A 96W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 15A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLR110TRPBF-VB
- Store part #
- C20755367
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C20755367
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.19 | ₹75.19 |
| 10+ | ₹60.63 | ₹606.30 |
| 30+ | ₹54.55 | ₹1,636.50 |
| 100+ | ₹46.73 | ₹4,673.00 |
| 500+ | ₹37.39 | ₹18,695.00 |
| 1,000+ | ₹35.43 | ₹35,430.00 |
1 × ₹75.19
₹75.19
excl. GST
₹88.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRLR110TRPBF-VB
₹75.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 114mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.408 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 150°C
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant (Directive 2002/95/EC)
