HXY MOSFETDatasheet (PDF)

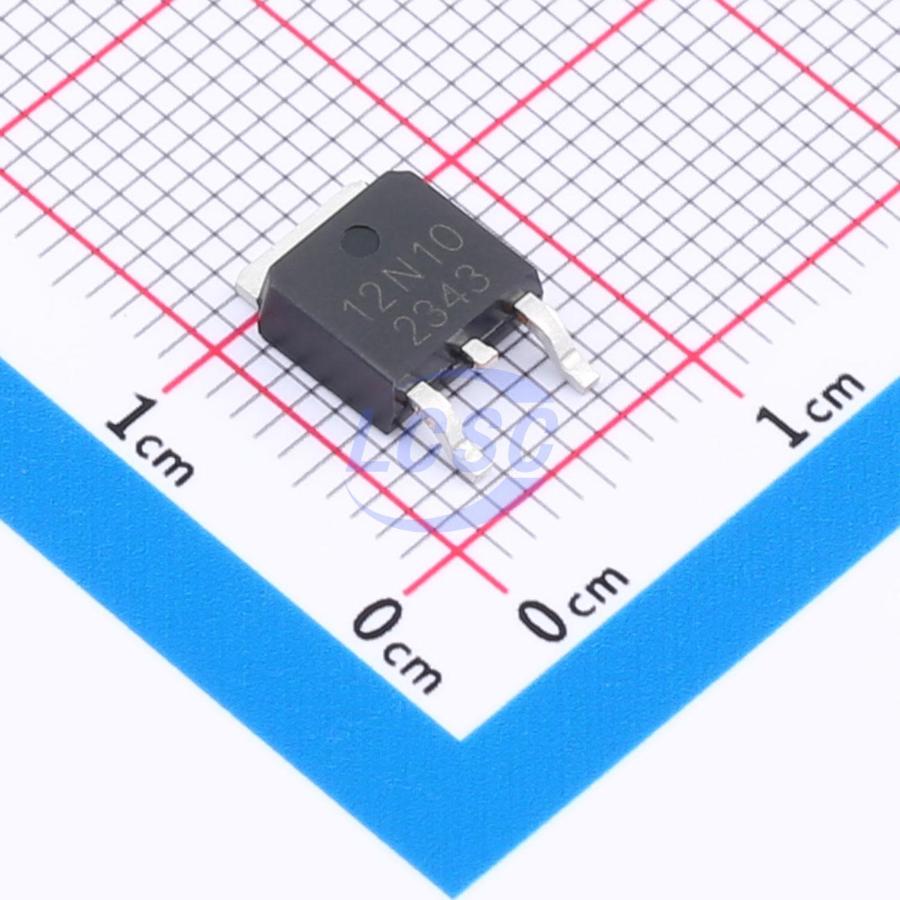

IRLR120NTRPBF-HXY
N-Channel 100V 12A 17W Surface Mount TO-252-2L
TO-252-2LRoHSActive
MOSFET N-CH 100V 12A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRLR120NTRPBF-HXY
- Store part #
- C20606286
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C20606286
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.02 | ₹130.10 |
| 50+ | ₹20.86 | ₹1,043.00 |
| 150+ | ₹18.67 | ₹2,800.50 |
| 500+ | ₹15.90 | ₹7,950.00 |
| 2,500+ | ₹14.04 | ₹35,100.00 |
| 5,000+ | ₹13.30 | ₹66,500.00 |
5 × ₹26.02
₹130.10
excl. GST
₹153.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRLR120NTRPBF-HXY
₹130.10 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 25.9pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 196pF
- Pd - Power Dissipation
- 17W
- Reverse Transfer Capacitance (Crss)
- 21.4pF
- RDS(on)
- 95mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.358 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOD2922-HXY#C22367146HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 20 | ₹17.03 · 20 in stock | View |
 | STD10NF10T4-HXY#C22367147HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 45 | ₹32.47 · 45 in stock | View |
 | IRLR120NPBF-HXY#C22367149HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 118 | ₹55.31 · 118 in stock | View |
 | IRFR120NPBF-HXY#C22367152HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 1,958 | ₹69.34 · 1,958 in stock | View |
 | HFQD19N10LTM#C42401093HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 10 | ₹66.34 · 10 in stock | View |
