JSMSEMIDatasheet (PDF)

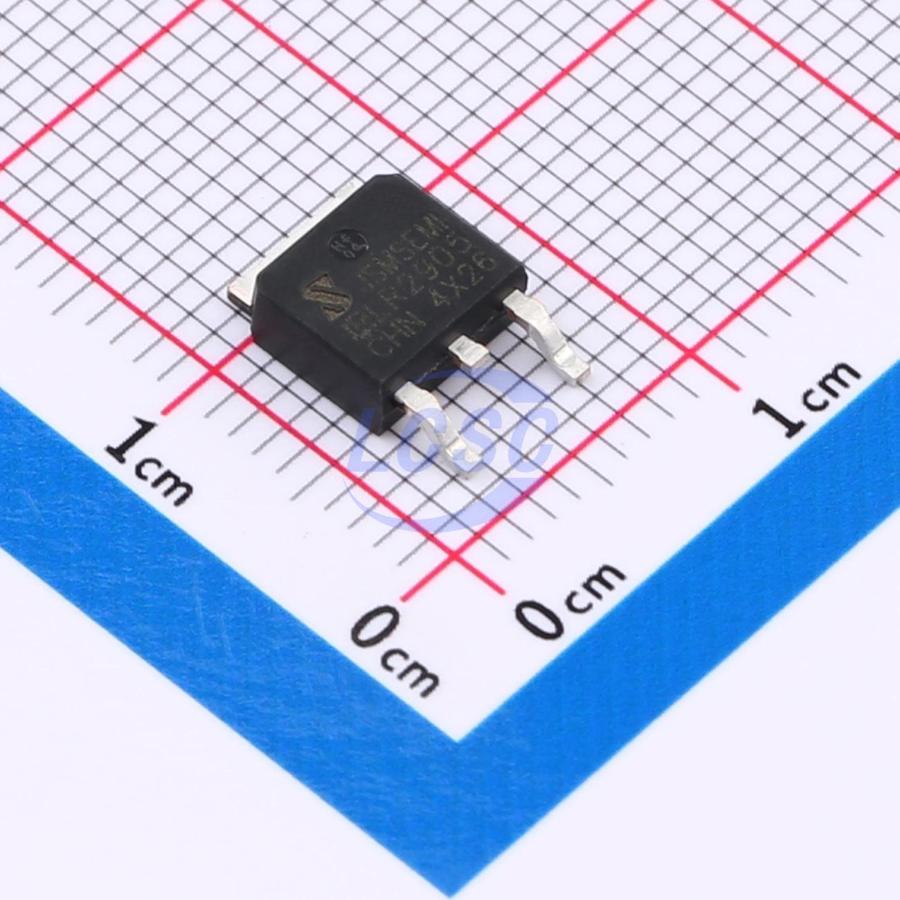

IRLR2905TRPBF-JSM
N-Channel 60V 50A 89W Surface Mount TO-252AA
TO-252AAROHS CompliantActive
MOSFET N-CH 60V 50A TO-252AA
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IRLR2905TRPBF-JSM
- Store part #
- C41421802
- Package / case
- TO-252AA
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
940 in stock
#C41421802
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.04 | ₹160.20 |
| 50+ | ₹25.16 | ₹1,258.00 |
| 150+ | ₹22.21 | ₹3,331.50 |
| 500+ | ₹18.54 | ₹9,270.00 |
| 2,500+ | ₹16.89 | ₹42,225.00 |
| 5,000+ | ₹15.92 | ₹79,600.00 |
5 × ₹32.04
₹160.20
excl. GST
₹189.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRLR2905TRPBF-JSM
₹160.20 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.9nF
- Pd - Power Dissipation
- 89W
- Reverse Transfer Capacitance (Crss)
- 124pF
- RDS(on)
- 17mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 50nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.501 g
Overview
This N-Channel MOSFET uses advanced trench technology and design to provide excellent RDS(on) with low gate charge. It can be used in a wide variety of applications.
Applications
- Automotive applications
- Hard-switching and high-frequency circuits
- Uninterruptible power supplies
Key features
- VDs = 60V, In = 50A, RDs(on) < 17mΩ @Vgs = 10V
- Low gate charge.
- Green device available.
- Advanced high cell density trench technology for ultra low RDS(on).
- Excellent package for good heat dissipation.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR1205TR-JSM#C18190116JSMSEMI · TO-252 | JSMSEMI | TO-252 | 3,950 | ₹45.10 · 3,950 in stock | View |
 | JSM100N06D#C22447120JSMSEMI · TO-252 | JSMSEMI | TO-252 | 935 | ₹27.61 · 935 in stock | View |
 | IRLR3636TRPBF-JSM#C18191007JSMSEMI · TO-252 | JSMSEMI | TO-252 | 500 | ₹77.08 · 500 in stock | View |
 | IPD90N06S4L-06-JSM#C55112058JSMSEMI · TO-252 | JSMSEMI | TO-252 | 495 | ₹102.35 · 495 in stock | View |
 | DMTH6005LK3Q-13-JSM#C55112060JSMSEMI · TO-252 | JSMSEMI | TO-252 | 2,160 | ₹77.01 · 2,160 in stock | View |
