HXY MOSFETDatasheet (PDF)

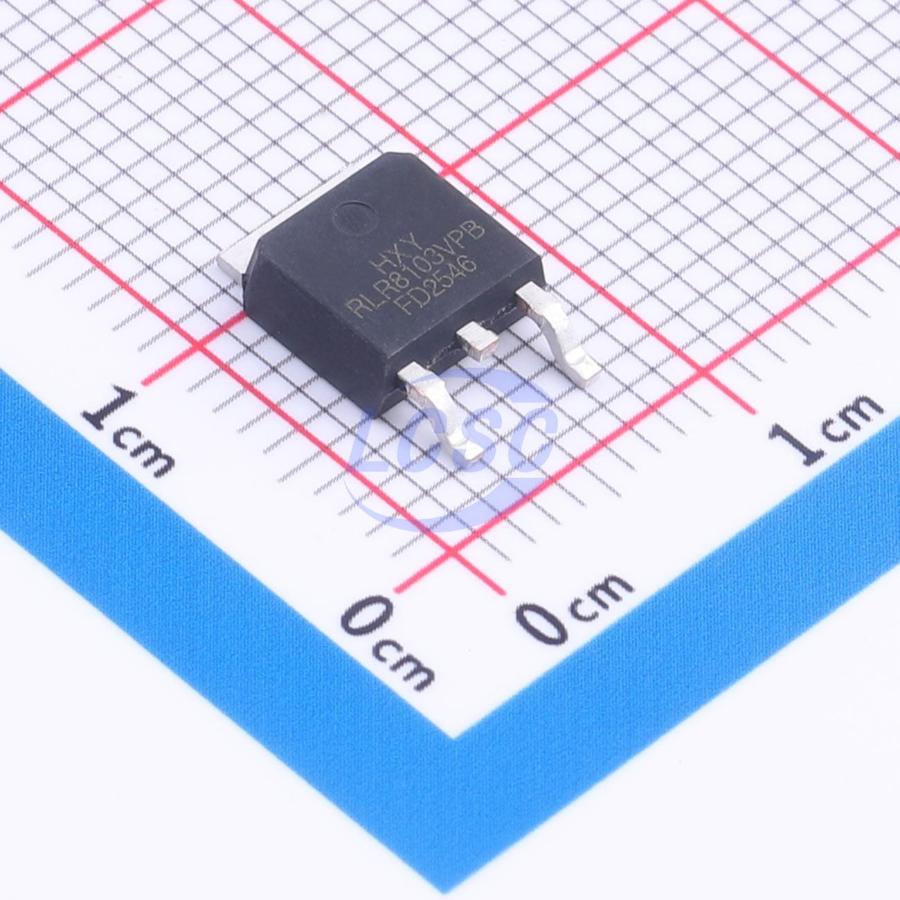

IRLR8103VPBF-HXY
41W 30V 60A 7mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRLR8103VPBF-HXY
- Store part #
- C53263271
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C53263271
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.34 | ₹86.70 |
| 50+ | ₹13.81 | ₹690.50 |
| 150+ | ₹12.05 | ₹1,807.50 |
| 500+ | ₹10.73 | ₹5,365.00 |
| 2,500+ | ₹9.67 | ₹24,175.00 |
| 5,000+ | ₹9.14 | ₹45,700.00 |
5 × ₹17.34
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRLR8103VPBF-HXY
₹86.70 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 163pF
- Ciss-Input Capacitance
- 1.317nF
- Pd - Power Dissipation
- 41W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 131pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12.6nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.391 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD6670S-HXY#C51949308HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 97 | ₹195.66 · 97 in stock | View |
 | NTD4959NHT4G-HXY#C53263061HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 96 | ₹58.57 · 96 in stock | View |
 | NTD4979NT4G-HXY#C53263062HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 98 | ₹65.94 · 98 in stock | View |
 | NTD4810NT4G-HXY#C53263063HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 98 | ₹65.94 · 98 in stock | View |
 | NTD4808NT4G-HXY#C53263064HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 97 | ₹65.29 · 97 in stock | View |
