TECH PUBLICDatasheet (PDF)

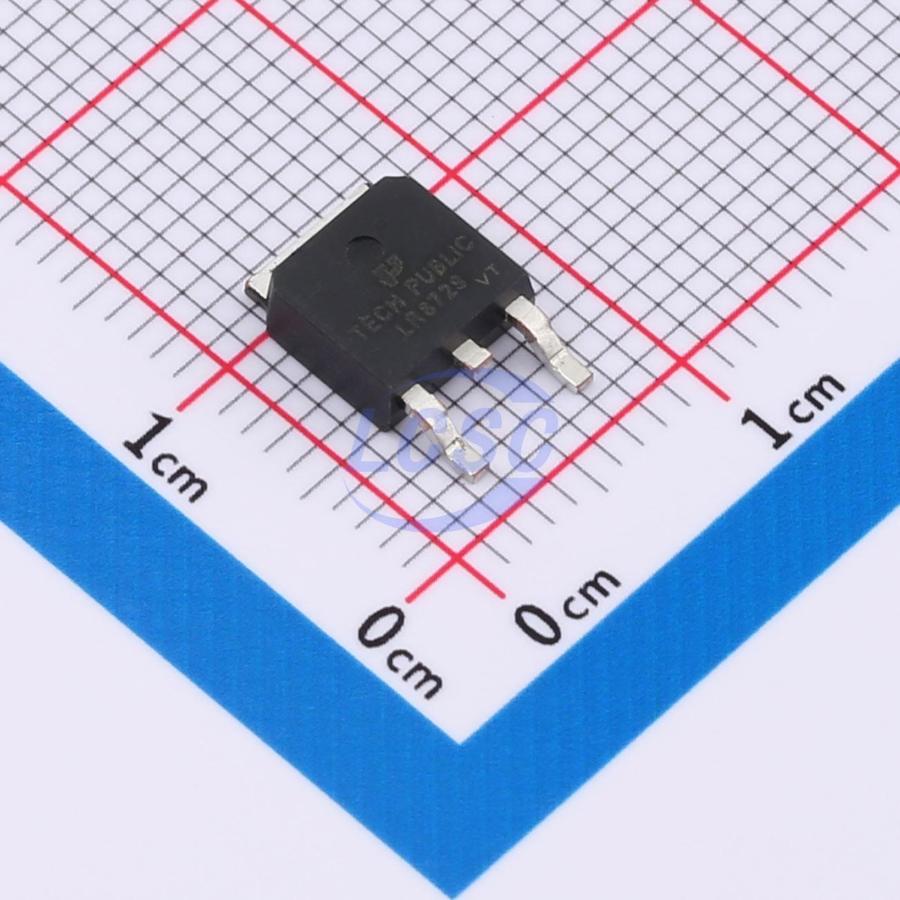

IRLR8729TRPBF-TP
30V 50A 181W Surface Mount TO-252
TO-252RoHSActive
MOSFET 30V 50A TO-252
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRLR8729TRPBF-TP
- Store part #
- C41348203
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,115 in stock
#C41348203
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.05 | ₹80.25 |
| 50+ | ₹14.01 | ₹700.50 |
| 150+ | ₹13.14 | ₹1,971.00 |
| 500+ | ₹12.05 | ₹6,025.00 |
| 2,500+ | ₹11.58 | ₹28,950.00 |
| 5,000+ | ₹11.29 | ₹56,450.00 |
5 × ₹16.05
₹80.25
excl. GST
₹94.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRLR8729TRPBF-TP
₹80.25 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 392pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 5.672nF
- Pd - Power Dissipation
- 181W
- Reverse Transfer Capacitance (Crss)
- 352pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 103nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.465 g
Overview
Applications
- Load Switch
- PWM Application
- Power management
Key features
- 30V, 50A
- RDS(ON) 3.88mΩ @ VGS = 10V (Typ)
- Advanced Trench Technology
- Provide Excellent RDS(on) and Low Gate Charge
- Lead free product is acquired
