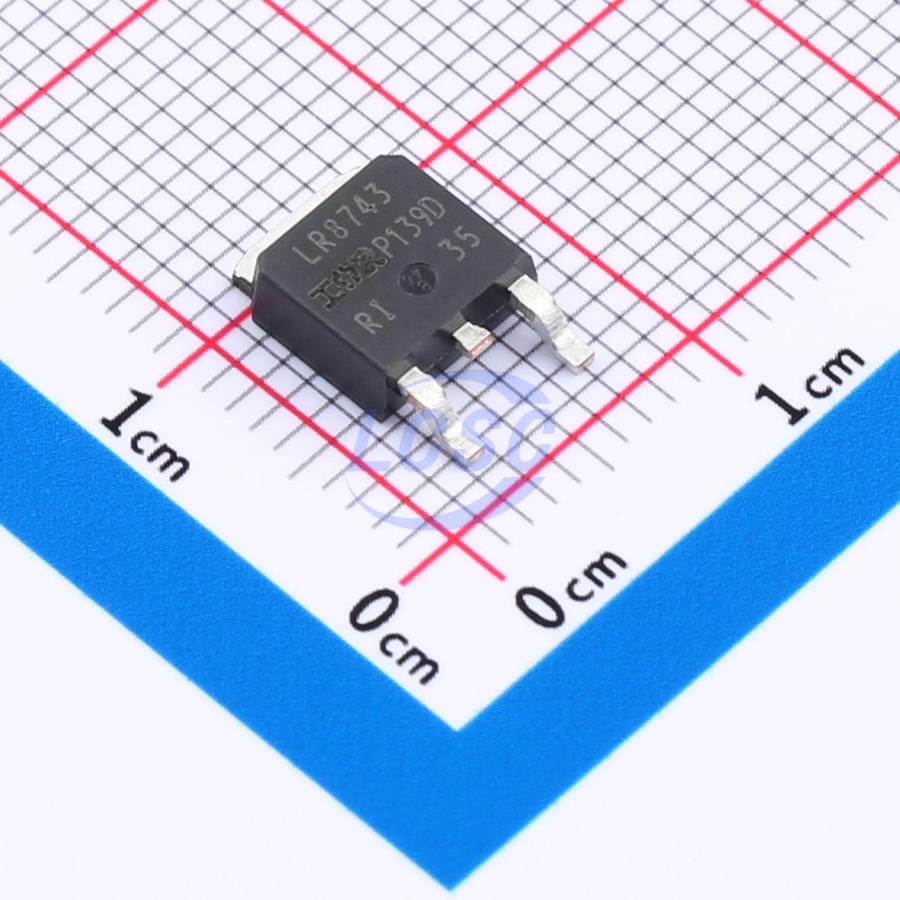

IRLR8743TRPBF
N-Channel 30V 160A 135W Surface Mount TO-252
TO-252ROHS3 CompliantActive
MOSFET N-CH 30V 160A TO-252
- Manufacturer
- Infineon
- Manufacturer part #
- IRLR8743TRPBF
- Store part #
- C51360
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C51360
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.10 | ₹153.10 |
| 10+ | ₹125.01 | ₹1,250.10 |
| 30+ | ₹110.85 | ₹3,325.50 |
| 100+ | ₹96.91 | ₹9,691.00 |
| 500+ | ₹79.50 | ₹39,750.00 |
| 1,000+ | ₹75.13 | ₹75,130.00 |
1 × ₹153.10
₹153.10
excl. GST
₹180.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRLR8743TRPBF
₹153.10 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 950pF
- Ciss-Input Capacitance
- 4.88nF
- Pd - Power Dissipation
- 135W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 160A
- Reverse Transfer Capacitance (Crss)
- 470pF
- RDS(on)
- 3.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 59nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.35V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.53 g
Overview
Applications
- High Frequency Synchronous Buck Converters for Computer Processor Power
- High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use
Key features
- Very Low RDS(on) at 4.5V VGS
- Ultra-Low Gate Impedance
- Fully Characterized Avalanche Voltage and Current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLR7843TRPBF#C21988Infineon · TO-252 | Infineon | TO-252 | 5,144 | ₹115.35 · 5,144 in stock | View |
 | TPM30160NK3#C19268132TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 2,555 | ₹105.81 · 2,555 in stock | View |
| SP30N03ATH#C41354855Siliup · TO-252 | Siliup | TO-252 | 2,140 | ₹26.74 · 2,140 in stock | View | |
 | HSU3018B#C701002HUASHUO · TO-252 | HUASHUO | TO-252 | 1,095 | ₹54.36 · 1,095 in stock | View |
 | IRLR7843TR(UMW)#C7499399UMW · TO-252 | UMW | TO-252 | 32,195 | ₹34.81 · 32,195 in stock | View |
