RENESAS

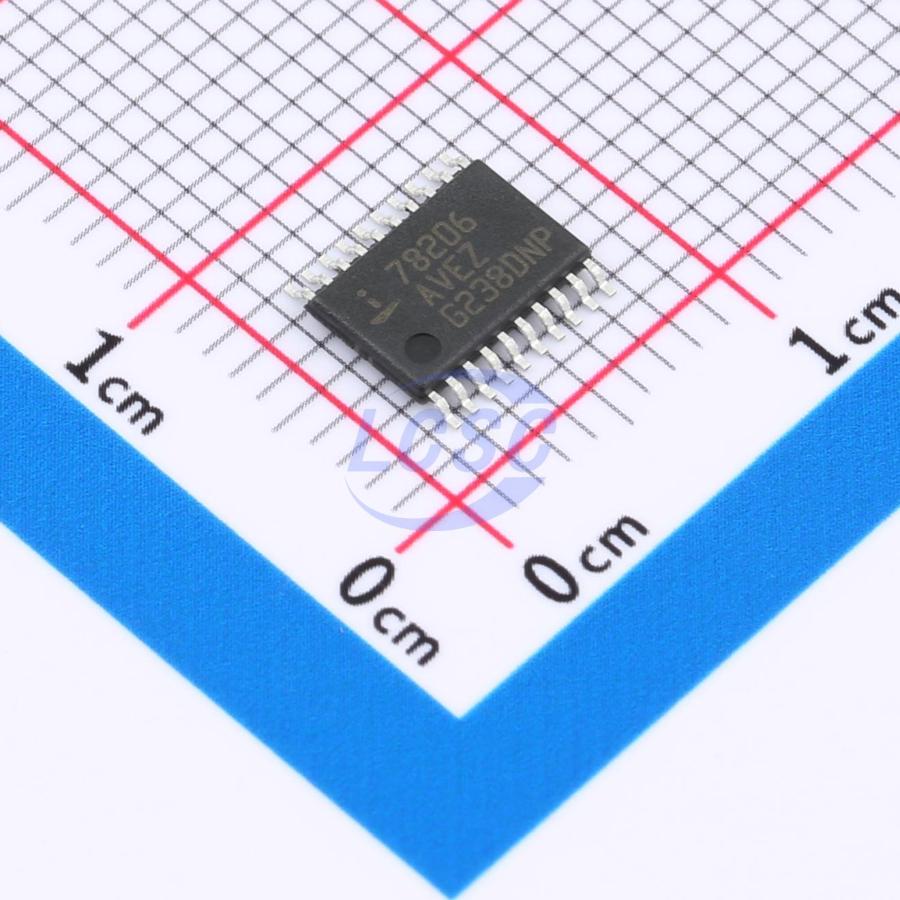

ISL78206AVEZ-T7A

200kHz~2.2MHz Step-down type Adjustable 2.5A HTSSOP-20-EP Voltage Regulators - DC DC Switching Regulators RoHS

HTSSOP-20-EPROHS3 CompliantActive

40V 2.5A Buck controller with integrated high-side MOSFET

Manufacturer: RENESAS
Manufacturer part #: ISL78206AVEZ-T7A
Store part #: C2072237
Package / case: HTSSOP-20-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7 in stock

#C2072237

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
1+	₹652.20	₹652.20
10+	₹636.01	₹6,360.10
30+	₹625.21	₹18,756.30
100+	₹614.20	₹61,420.00

Quantity (min 1)

1 × ₹652.20

₹652.20

excl. GST

₹769.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per reel

ISL78206AVEZ-T7A

₹652.20 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+105℃@(TA)
Frequency - Switching: 200kHz~2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Frequency synchronization;Operating status indication;Overcurrent Protection;Built-in LDO regulator
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3V~40V
Switch tube (built-in/external): Built-in
Output Current: 2.5A
Quiescent Current: 1.3mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.12 g

Overview

The ISL78206 is an AEC-Q100 qualified 40V, 2.5A synchronous buck controller with a high-side MOSFET and low-side driver integrated. The ISL78206 supports a wide input voltage range from 3V to 40V, output current up to 2.5A, and can be operated in synchronous and non-synchronous buck topologies. The ISL78206 provides a low system cost, high efficiency, single part buck solution for automotive applications for a wide variety of input voltages. The ISL78206 offers the most robust current protections. It uses peak current mode control with cycle-by-cycle current limiting. It is implemented with frequency foldback undercurrent limit conditions. In addition, the hiccup overcurrent mode is also implemented to guarantee reliable operations under harsh short conditions. The ISL78206 has comprehensive protections against various faults, including overvoltage, undervoltage, programmable overcurrent and over-temperature. Built-in soft-start allows the IC to start-up smoothly and is reactivated during hiccup mode fault recovery.

Applications

Automotive applications
General purpose power regulator
24V bus power
Battery power
Embedded processor and I/O supplies

Key features

Ultra wide input voltage range 3V to 40V
Less than 5μA (max) shutdown input current (IC disabled)
Temperature range -40°C to ±105°C
Integrated high-side MOSFET
Operational topologies - Synchronous buck - Non-synchronous buck
Programmable frequency from 200kHz to 2.2MHz and frequency synchronization capability
±1% tight voltage regulation accuracy
Reliable cycle-by-cycle overcurrent protection - Temperature compensated current sense - Frequency foldback - Programmable OC limit - Hiccup mode protection in worst case short condition
20 Ld HTSSOP package, pin-to-pin compatible with ISL78201 boost buck
AEC-Q100 qualified
Pb-free (RoHS compliant)
