RENESAS

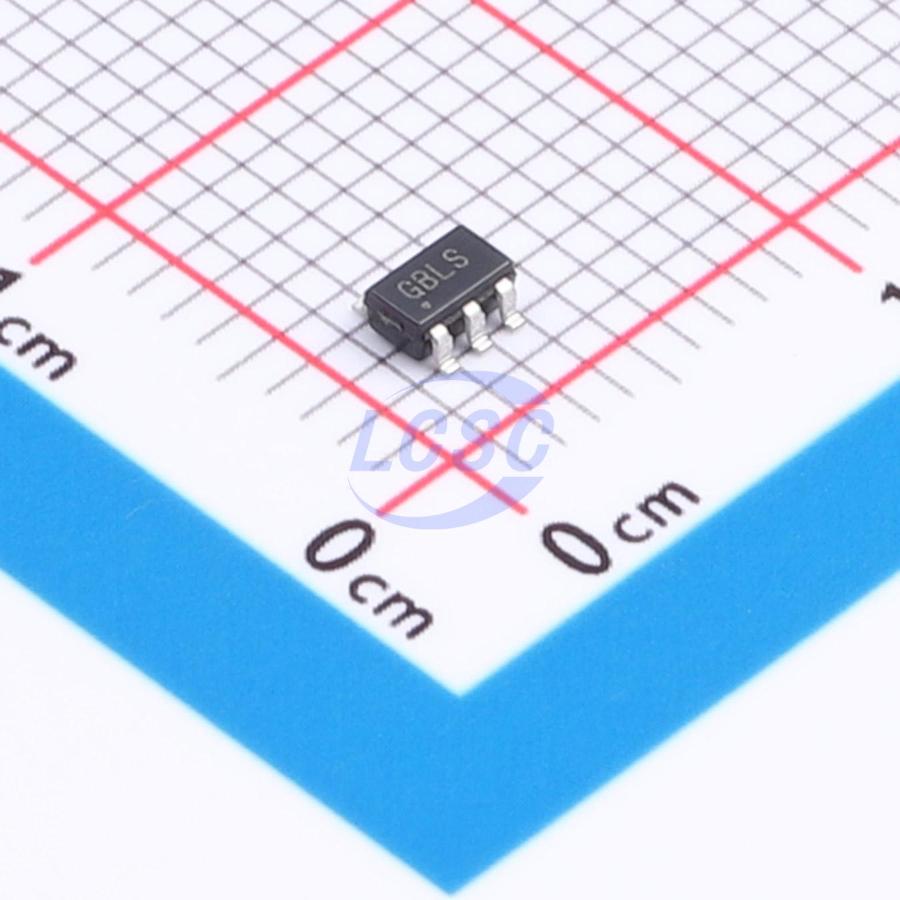

ISL9111AEH50Z-T

1.2MHz Boost Fixed 5V SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS3 CompliantActive

Manufacturer: RENESAS
Manufacturer part #: ISL9111AEH50Z-T
Store part #: C2072191
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2072191

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹320.25	₹320.25
10+	₹312.65	₹3,126.50
30+	₹307.66	₹9,229.80
100+	₹302.68	₹30,268.00

Quantity (min 1)

1 × ₹320.25

₹320.25

excl. GST

₹377.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

ISL9111AEH50Z-T

₹320.25 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃@(TA)
Frequency - Switching: 1.2MHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode;Load disconnect;Overcurrent Protection
Output Type: Fixed
Topology: Boost
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Quiescent Current: 20uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.001 g

Overview

The ISL9111 and ISL9111A provide a power supply solution for single-cell, dual-cell, or three-cell alkaline, NiCd or NiMH battery-powered applications. The device has a typical 0.8V start-up voltage and is capable of supplying up to 5.25V output voltage. Both devices are guaranteed to supply 100mA from a single-cell input and 240mA from a dual-cell input when output is 3.3V. High 1.2MHz switching frequency allows for the use of tiny, low-profile inductors and ceramic capacitors to minimize the size of the solution. The ISL9111 and ISL9111A are internally compensated, fully integrated synchronous boost converters optimized for efficiency with minimal external components. At light load, the device enters skip mode and consumes only 20μμ of quiescent current, resulting in higher efficiency at light loads and maximum battery life. The ISL9111 and ISL9111A address both rechargeable and non-rechargeable battery applications. The ISL9111 has a UVLO feature, which will internally shut off at 0.7V protecting a rechargeable battery. The ISL9111A has this feature disabled to maximize the usable life of a non-rechargeable single cell battery. The parts are available in fixed 3.0V, 3.3V and 5.0V output voltage versions or an adjustable output voltage version (ADJ). The fixed output voltage version also provides a FAULT pin for fault condition monitoring. The ISL9111 and ISL9111A are available in a 6 Ld SOT-23 package.
