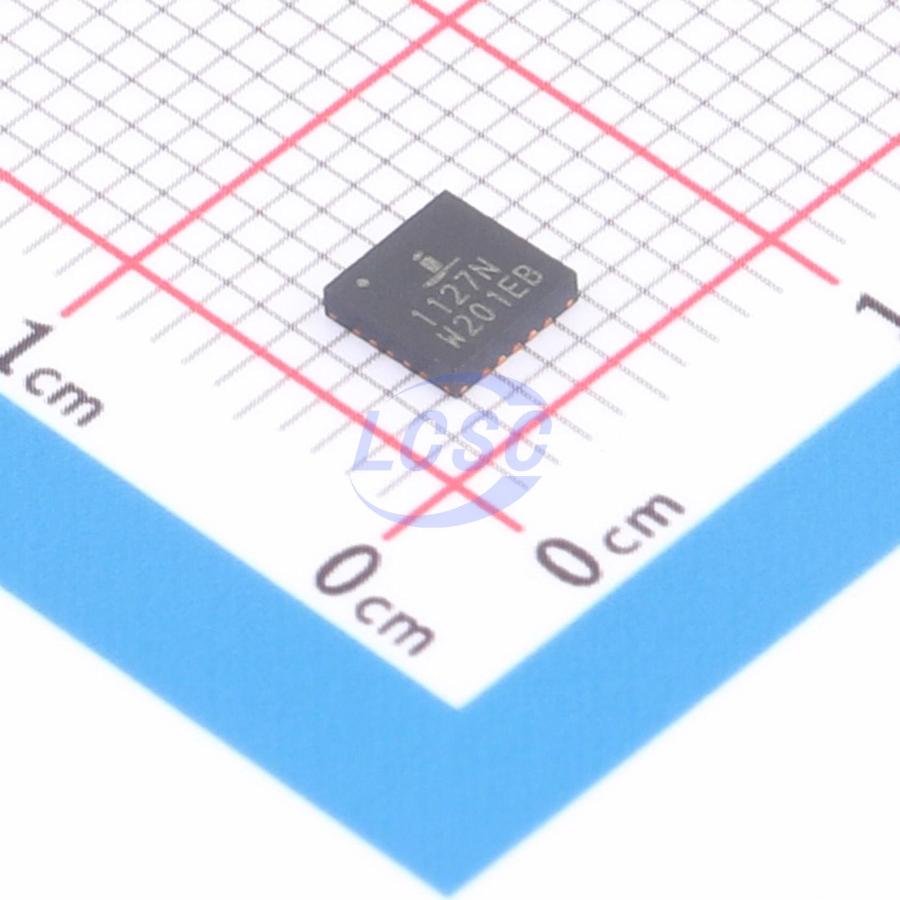

ISL91127IRNZ-T

The ISL91127IR is a high-current buck-boost switching regulator for systems using new battery chemistries. It uses Renesas’ proprietary buck-boost algorithm to maintain voltage regulation while providing excellent efficiency and very low output voltage ripple when the input voltage is close to the output voltage. The ISL91127IR is capable of delivering at least 2A continuous output current (VOUT=3.3V) over a battery voltage range of 2.5V to 4.35V. This maximizes the energy utilization of advanced single-cell Li-ion battery chemistries that have significant capacity left at voltages below the system voltage. Its fully synchronous low ON-resistance, 4-switch architecture and a low quiescent current of only 30μA optimize efficiency under all load conditions. The ISL91127IR supports stand-alone applications with a fixed 3.3V or 3.5V output voltage or adjustable output voltage with an external resistor divider. Output voltages as low as 1.0V or as high as 5.2V are supported. The ISL91127IR is available in a 20 Ld, 0.5mm pitch QFN (4mmx4mm) package. The 2.5MHz switching frequency further reduces the size of external components.

Applications

• Handheld and battery powered consumer and medical devices
• Brownout free system voltage for smartphones and tablet PCs
• Wireless communication devices
• 2G/3G/4G RF power amplifiers

Key features

• Accepts input voltages above or below regulated output voltage
• Automatic and seamless transitions between buck and boost modes
• Input voltage range: 1.8V to 5.5V
• Output current: up to 2A (PVIN = 2.5V, VOUT = 3.3V)
• High efficiency: up to 96%
• 30μA quiescent current maximizes light-load efficiency
• 2.5MHz switching frequency minimizes external component size
• Fully protected for short-circuit, over-temperature and undervoltage
• 20 Ld 4mmx4mm QFN package
