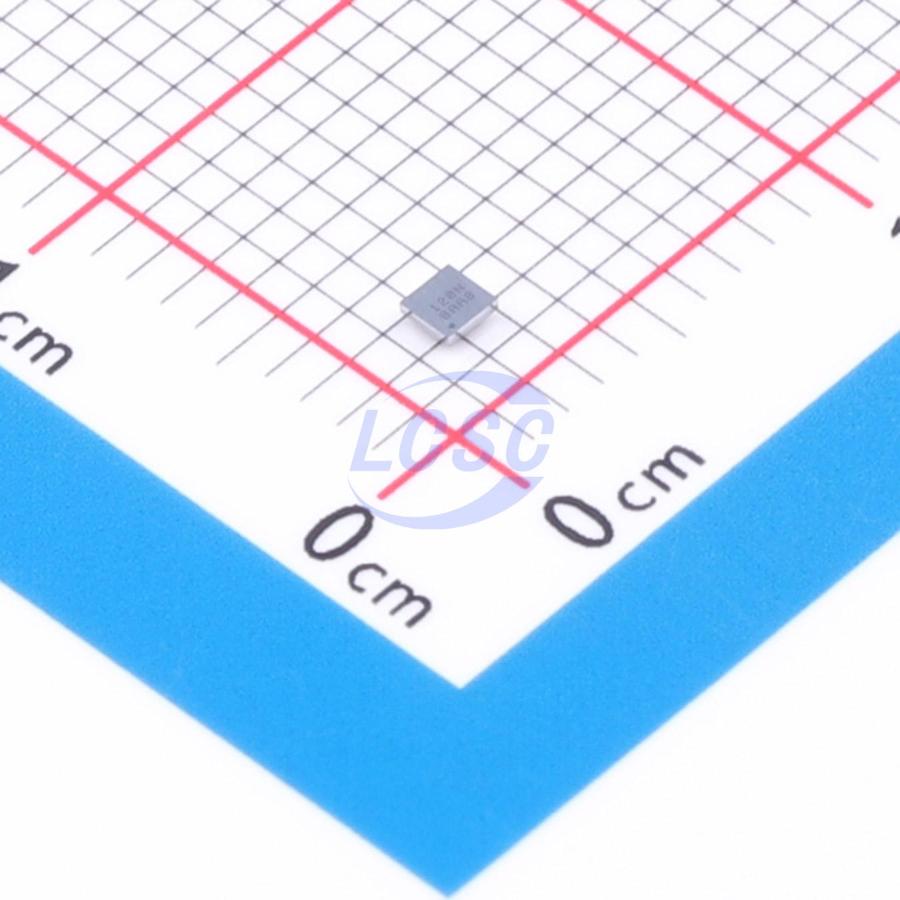

ISL9120IINZ-T

The ISL9120IR is a highly integrated buck-boost switching regulator that accepts input voltages either above or below the regulated output voltage. This regulator automatically transitions between buck and boost modes without significant output disturbance. The ISL9120IR also has automatic bypass functionality for when the input voltage is generally within ±% to a% of the output voltage, there will be a direct bypass connection between the VIN and VOUT pins. In addition to the automatic bypass functionality, the ISL9120IR also has a forced bypass functionality with the use of the BYPS pin. This device is capable of delivering up to 800 mA of output current (V_IN = 2.5 V, V_OUT = 3.3 V) and provides excellent efficiency due to its adaptive current limit pulse frequency modulation (PFM) control architecture. The ISL9120IR is designed for stand-alone applications and supports a 3.3V fixed output voltage or variable output voltages with an external resistor divider. The forced bypass power saving mode can be chosen if voltage regulation is not required. The device consumes less than 3.5 μA of current over the operating temperature range in the forced bypass mode. The ISL9120IR requires only a single inductor and very few external components. Power supply solution size is minimized by a 3mmx3mm 12 Ld TQFN package.

Applications

• Smartphones and tablets
• Portable consumer and wearable devices

Key features

• Accepts input voltages above or below regulated output voltage
• Automatic bypass mode functionality
• Automatic and seamless transitions between buck and boost modes
• Input voltage range: 1.8V to 5.5V
• Selectable forced bypass power saving mode
• Adaptive multilevel current limit scheme to optimize efficiency at low and high currents
• Output current: up to 800 mA (ΔV_IN = 2.5V, V_OUT = 3.3V)
• High efficiency: up to 98%
• 41 μA quiescent current maximizes light-load efficiency
• Fully protected for over-temperature and undervoltage
• Small 3mmx3mm 12 Ld TQFN package
