InfineonDatasheet (PDF)

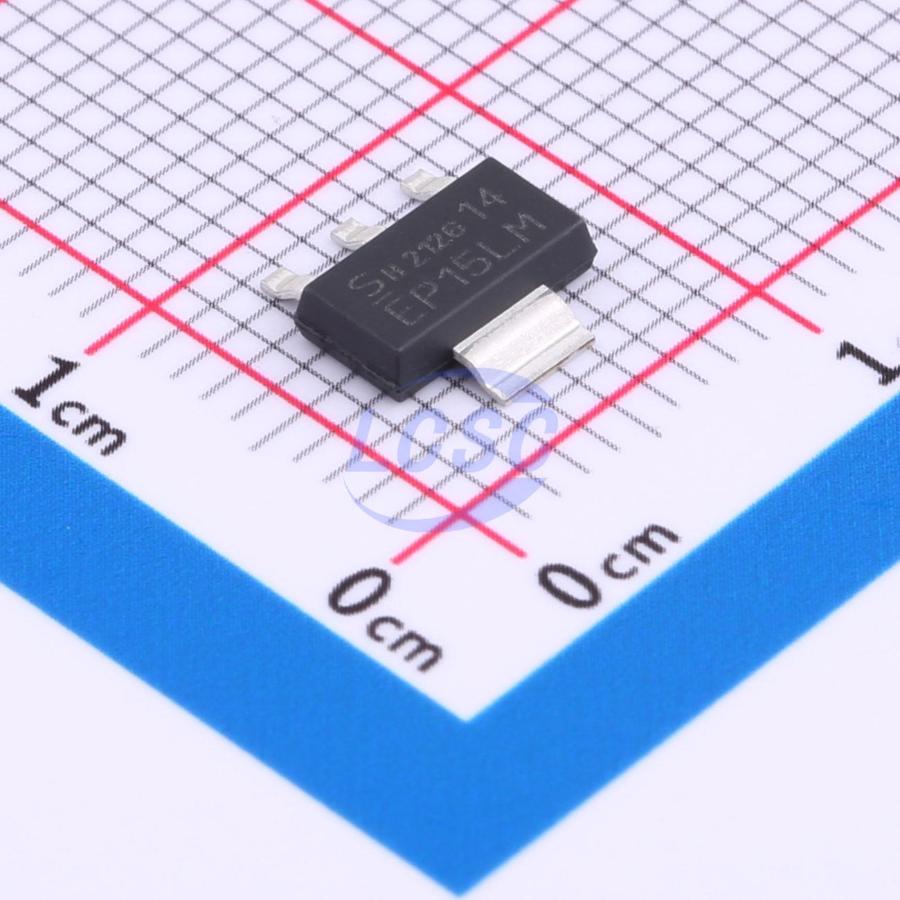

ISP14EP15LMXTSA1
P-Channel 150V 1.29A 5W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET P-CH 150V 1.29A SOT-223
- Manufacturer
- Infineon
- Manufacturer part #
- ISP14EP15LMXTSA1
- Store part #
- C3278590
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
157 in stock
#C3278590
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.47 | ₹96.47 |
| 10+ | ₹78.60 | ₹786.00 |
| 30+ | ₹69.78 | ₹2,093.40 |
| 100+ | ₹60.94 | ₹6,094.00 |
| 500+ | ₹55.57 | ₹27,785.00 |
| 1,000+ | ₹52.76 | ₹52,760.00 |
1 × ₹96.47
₹96.47
excl. GST
₹113.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ISP14EP15LMXTSA1
₹96.47 for 1 + GST
Specifications
- Drain to Source Voltage
- 150V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 1.29A
- Ciss-Input Capacitance
- 530pF
- Pd - Power Dissipation
- 5W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 1.38Ω@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
Key features
- P-channel
- Ultra-low on-resistance RDS(on) at VGS = 4.5 V
- Logic level
- 100% avalanche tested
- Enhancement mode
- Lead-free terminal plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSL2P25#C22359226HUASHUO · SOT-223 | HUASHUO | SOT-223 | 2,850 | ₹43.05 · 2,850 in stock | View |
 | BSP220,115-VB#C52190941VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 5 | ₹126.27 · 5 in stock | View |
 | HSL3P20#C22359225HUASHUO · SOT-223 | HUASHUO | SOT-223 | 3,030 | ₹44.62 · 3,030 in stock | View |
 | ZVP4525GTA-VB#C19711366VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 6 | ₹144.95 · 6 in stock | View |
 | BSP225-VB#C20755477VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 32 | ₹150.81 · 32 in stock | View |
