InfineonDatasheet (PDF)

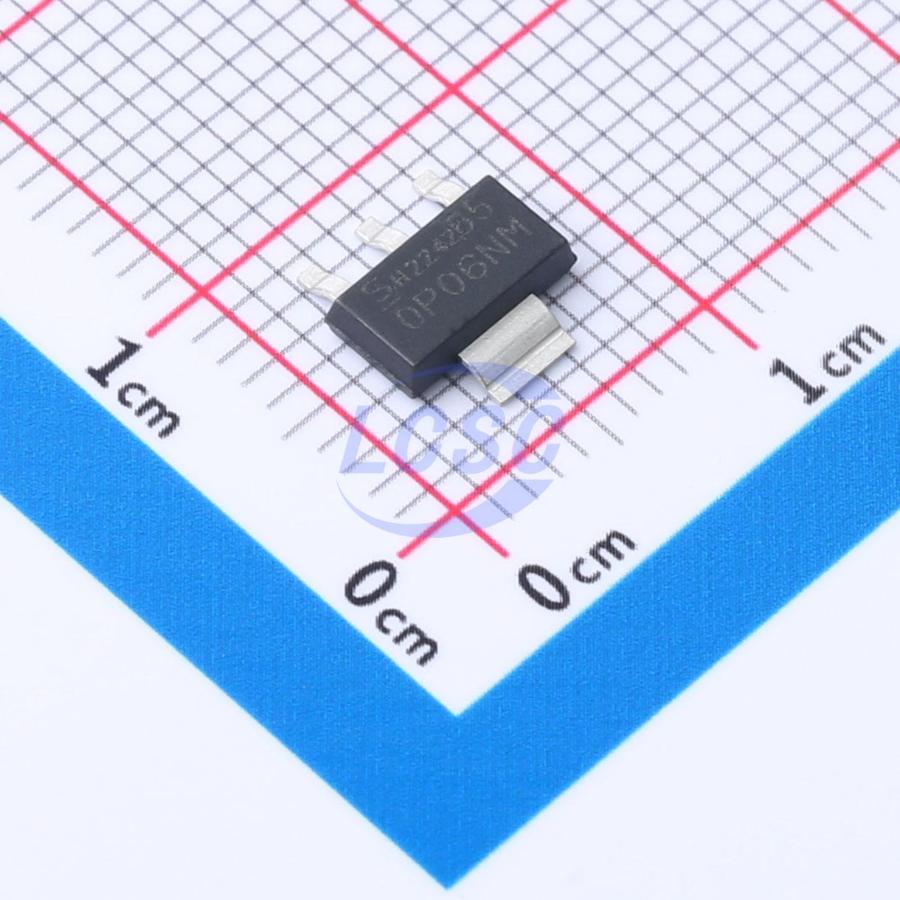

ISP650P06NM
P-Channel 60V 3.7A 4.2W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET P-CH 60V 3.7A SOT-223
- Manufacturer
- Infineon
- Manufacturer part #
- ISP650P06NM
- Store part #
- C538454
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C538454
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.02 | ₹80.02 |
| 10+ | ₹78.07 | ₹780.70 |
| 30+ | ₹76.99 | ₹2,309.70 |
| 100+ | ₹75.69 | ₹7,569.00 |
1 × ₹80.02
₹80.02
excl. GST
₹94.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ISP650P06NM
₹80.02 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 220pF
- Current - Continuous Drain(Id)
- 3.7A
- Ciss-Input Capacitance
- 1.6nF
- Pd - Power Dissipation
- 4.2W
- Reverse Transfer Capacitance (Crss)
- 54pF
- RDS(on)
- 54mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 39nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.195 g
Overview
Key features
- P-channel
- Ultra-low on-resistance RDS(on)
- 100% avalanche tested
- Normal level
- Enhancement mode
- Lead-free terminal plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSL6115#C45385110HUASHUO · SOT-223 | HUASHUO | SOT-223 | 1,235 | ₹30.40 · 1,235 in stock | View |
 | HSL10P06#C5128193HUASHUO · SOT-223 | HUASHUO | SOT-223 | 2,985 | ₹28.62 · 2,985 in stock | View |
 | TPSTN3P6F6#C5246420TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,558 | ₹65.83 · 2,558 in stock | View |
 | BSP170P-VB#C709922VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 672 | ₹89.87 · 672 in stock | View |
 | IRFL9014TRPBF-VB#C558160VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 139 | ₹91.88 · 139 in stock | View |
