InfineonDatasheet (PDF)

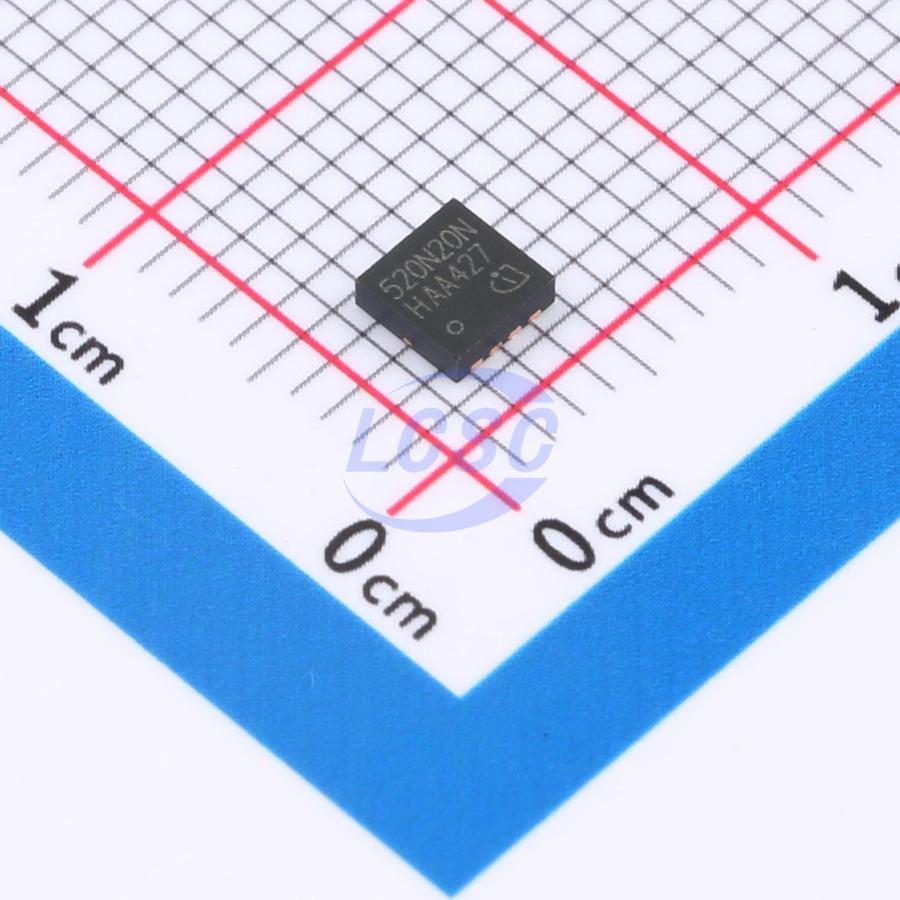

ISZ520N20NM6ATMA1
200V 26A 88W 52mΩ@10V 1 N-channel N-Channel TSDSON-8 Single FETs, MOSFETs RoHS
TSDSON-8ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- ISZ520N20NM6ATMA1
- Store part #
- C22408593
- Package / case
- TSDSON-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
134 in stock
#C22408593
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹174.33 | ₹174.33 |
| 10+ | ₹171.50 | ₹1,715.00 |
| 30+ | ₹169.56 | ₹5,086.80 |
| 100+ | ₹167.82 | ₹16,782.00 |
1 × ₹174.33
₹174.33
excl. GST
₹205.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ISZ520N20NM6ATMA1
₹174.33 for 1 + GST
Specifications
- Drain to Source Voltage
- 200V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 26A
- Output Capacitance(Coss)
- 160pF
- Ciss-Input Capacitance
- 960pF
- Pd - Power Dissipation
- 88W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 52mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14.9nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.305 g
Overview
SI2302 is an N-channel logic-level enhancement-mode power MOSFET fabricated using high cell density DMOS trench technology. This high-density process is specifically designed to minimize on-resistance. These devices are particularly suited for low-voltage applications such as mobile phone and notebook PC power management, as well as other battery-powered circuits requiring high-side switching and low in-line power loss in ultra-compact SMT packages.
Applications
- Notebook PC power management
- Portable devices
- Battery-powered systems
- Load switches
- Digital SLR cameras
Key features
- N-channel, normally-on
- Ultra-low on-resistance RDS(on)
- Excellent gate charge × RDS(on) product (figure of merit FOM)
- Ultra-low reverse recovery charge (Qrr)
- High avalanche energy rating
- Operating temperature up to 175°C
- Lead-free lead finish; RoHS compliant
- Halogen-free per IEC61249-2-21
- MSL 1 per J-STD-020
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STL52N60DM6#C3279590ST · PowerVDFN-8 | ST | PowerVDFN-8 | On request | ₹1,266.42 · 0 in stock | View |
 | BSC220N20NSFD#C534425Infineon · TDSON-8 | Infineon | TDSON-8 | 92 | ₹730.77 · 92 in stock | View |
 | BSC430N25NSFD#C534431Infineon · TSON-8 | Infineon | TSON-8 | 11 | ₹552.92 · 11 in stock | View |
 | BSC500N20NS3GATMA1#C5381902Infineon · TDSON-8 | Infineon | TDSON-8 | On request | ₹258.13 · 0 in stock | View |
 | BSC600N25NS3G#C3288852Infineon · TDSON-8 | Infineon | TDSON-8 | 730 | ₹284.91 · 730 in stock | View |
