LittelfuseDatasheet (PDF)

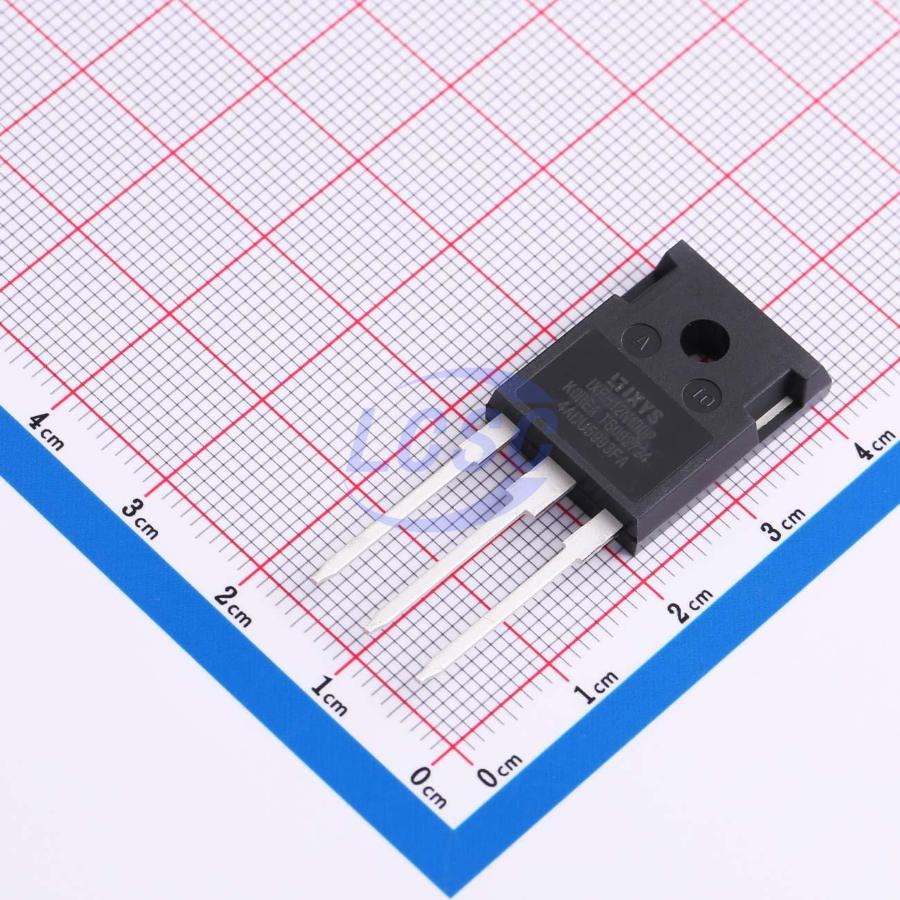

IXFH12N100P
N-Channel 1kV 12A 463W Through Hole TO-247
TO-247ROHS3 CompliantActive
MOSFET N-CH 1kV 12A TO-247
- Manufacturer
- Littelfuse
- Manufacturer part #
- IXFH12N100P
- Store part #
- C6884332
- Package / case
- TO-247
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C6884332
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,603.01 | ₹1,603.01 |
| 10+ | ₹1,576.35 | ₹15,763.50 |
| 30+ | ₹1,558.52 | ₹46,755.60 |
| 90+ | ₹1,540.90 | ₹1,38,681.00 |
1 × ₹1,603.01
₹1,603.01
excl. GST
₹1,891.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IXFH12N100P
₹1,603.01 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 1kV
- Current - Continuous Drain(Id)
- 12A
- Output Capacitance(Coss)
- 246pF
- Ciss-Input Capacitance
- 4.08nF
- Pd - Power Dissipation
- 463W
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 1.05Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 6.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Applications
- Switched-mode and resonant-mode power supplies
- DC-DC converters
- Laser drivers
- AC and DC motor drivers
- Robotics and servo control
Key features
- Low RDS(ON) and QG
- Avalanche rated
- Low package inductance
- Fast intrinsic rectifier
- High power density
- Easy to install
- Space-saving
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IXFH12N100P#C22409659Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 6 | ₹1,465.12 · 6 in stock | View | |
 | IXFH15N100Q3#C3290781Littelfuse/IXYS · TO-247AD | Littelfuse/IXYS | TO-247AD | 5 | ₹3,339.20 · 5 in stock | View |
 | IXFH15N100P#C22415567Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 5 | ₹3,330.07 · 5 in stock | View |
 | IXFH18N100Q3#C7425262Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 9 | ₹3,516.73 · 9 in stock | View |
| IXFH16N120P#C3290787Littelfuse/IXYS · TO-247AD | Littelfuse/IXYS | TO-247AD | 3 | ₹3,072.07 · 3 in stock | View | |
