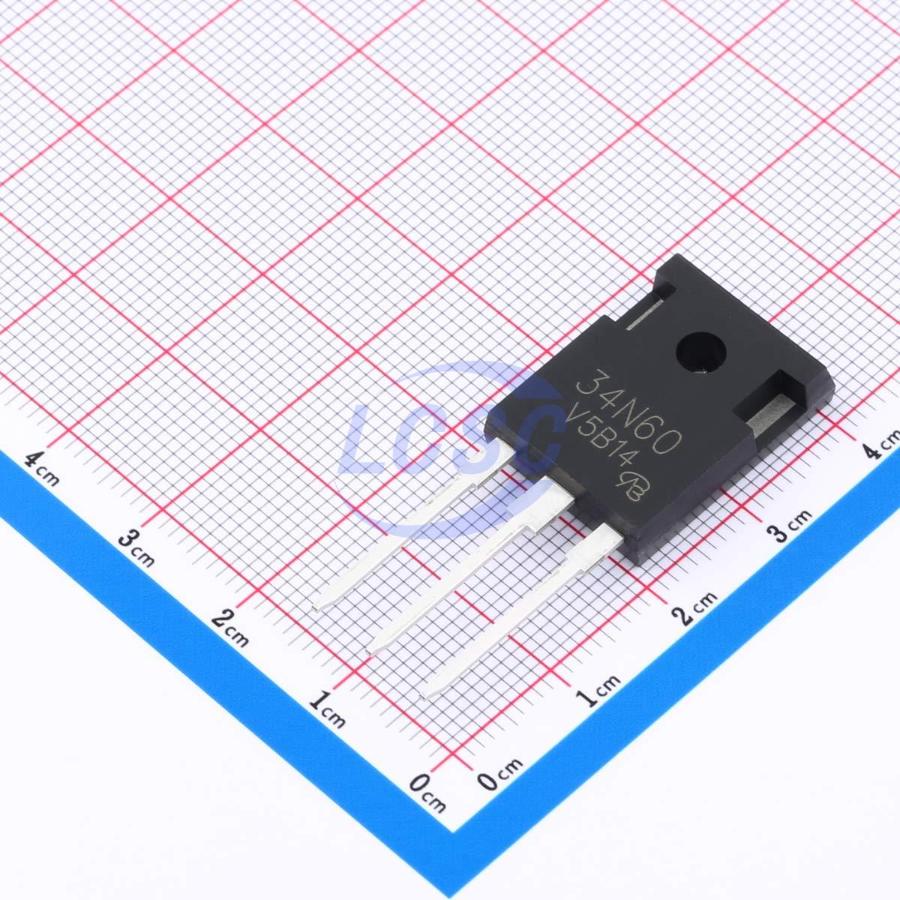

IXFH34N60X2A-VB
N-Channel 650V 36A 210W Through Hole TO-247
TO-247RoHSActive
MOSFET N-CH 650V 36A TO-247
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IXFH34N60X2A-VB
- Store part #
- C45662478
- Package / case
- TO-247
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C45662478
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹873.60 | ₹873.60 |
| 10+ | ₹784.58 | ₹7,845.80 |
| 30+ | ₹504.62 | ₹15,138.60 |
| 90+ | ₹451.06 | ₹40,595.40 |
| 600+ | ₹426.47 | ₹2,55,882.00 |
| 900+ | ₹415.37 | ₹3,73,833.00 |
1 × ₹873.60
₹873.60
excl. GST
₹1,030.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IXFH34N60X2A-VB
₹873.60 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 36A
- Ciss-Input Capacitance
- 3.9nF
- Pd - Power Dissipation
- 210W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 75mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.62 g
Overview
Applications
- Server and telecom power supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC)
- Lighting
- High Intensity Discharge (HID) lamps
- Fluorescent lamp ballast lighting
Key features
- Low figure of merit (FOM) Ron × Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FCH067N65S3-VB#C22357237VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 1 | ₹729.73 · 1 in stock | View |
 | STF45N65M5-VB#C22357238VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
 | TK090N65Z-VB#C22357239VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
 | SiHF074N65E-VB#C22357241VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
 | FCH077N65F_F085-VB#C22357242VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
