VBsemi ElecDatasheet (PDF)

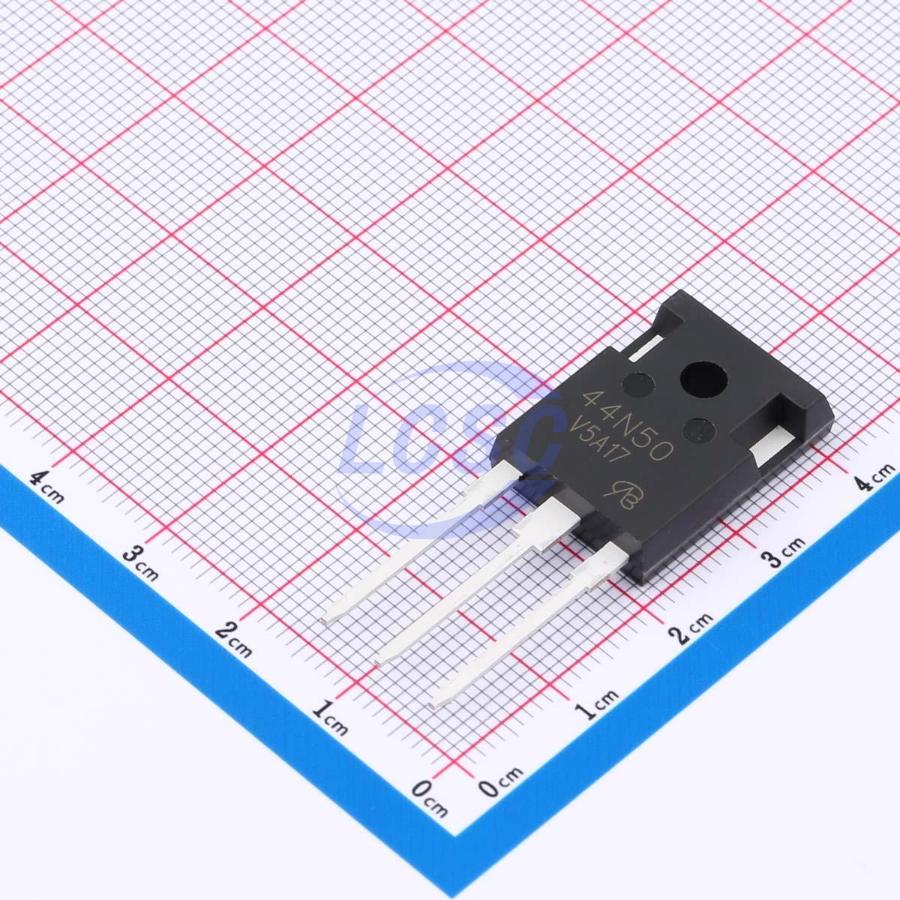

IXFR44N50P-VB
N-Channel 500V 40A 530W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 500V 40A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IXFR44N50P-VB
- Store part #
- C45662498
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C45662498
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹463.94 | ₹463.94 |
| 10+ | ₹399.18 | ₹3,991.80 |
| 30+ | ₹315.73 | ₹9,471.90 |
| 90+ | ₹274.23 | ₹24,680.70 |
| 600+ | ₹255.55 | ₹1,53,330.00 |
| 900+ | ₹247.30 | ₹2,22,570.00 |
1 × ₹463.94
₹463.94
excl. GST
₹547.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IXFR44N50P-VB
₹463.94 for 1 + GST
Specifications
- Drain to Source Voltage
- 500V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 40A
- Output Capacitance(Coss)
- 960pF
- Ciss-Input Capacitance
- 8.31nF
- Pd - Power Dissipation
- 530W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 350nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 9.1 g
Overview
Applications
- Switched-mode power supplies (SMPS)
- Uninterruptible power supplies
- High-speed power switching
- Hard-switching and high-frequency circuits
Key features
- Low gate charge Qg, simple drive requirements
- Improved gate, avalanche, and dynamic dV/dt robustness
- Fully characterized capacitance, avalanche voltage and current
- Low RDS(on)
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOK29S50L-VB#C45350879VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 10 | ₹590.18 · 10 in stock | View |
 | APT5014BLL-VB#C45350889VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 10 | ₹590.18 · 10 in stock | View |
 | APT5017BVR-VB#C45350892VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 10 | ₹590.18 · 10 in stock | View |
 | APT5020BVR-VB#C45350894VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 2 | ₹486.11 · 2 in stock | View |
 | APT5024BLL-VB#C45350895VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 8 | ₹486.11 · 8 in stock | View |
