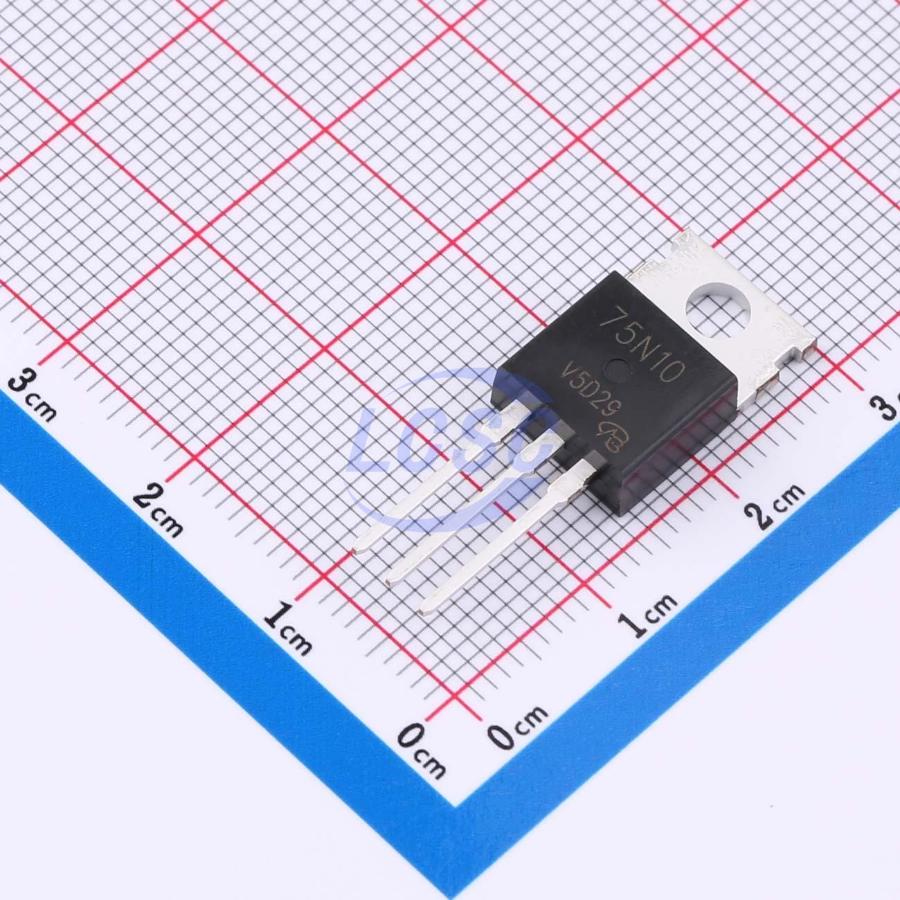

IXTP75N10P-VB
N-Channel 100V 70A 3.35W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 70A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IXTP75N10P-VB
- Store part #
- C47993988
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993988
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.12 | ₹142.12 |
| 10+ | ₹117.35 | ₹1,173.50 |
| 50+ | ₹104.74 | ₹5,237.00 |
| 100+ | ₹78.02 | ₹7,802.00 |
| 500+ | ₹70.62 | ₹35,310.00 |
| 1,000+ | ₹66.93 | ₹66,930.00 |
1 × ₹142.12
₹142.12
excl. GST
₹167.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IXTP75N10P-VB
₹142.12 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 210pF
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 3.35W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 17mΩ@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.09 g
Overview
Applications
- Isolated DC/DC Converter
Key features
- Trench power MOSFET
- 175 °C junction temperature
- Low thermal resistance package
- 100% gate resistance (Rg) tested
- RoHS compliant
