VBsemi ElecDatasheet (PDF)

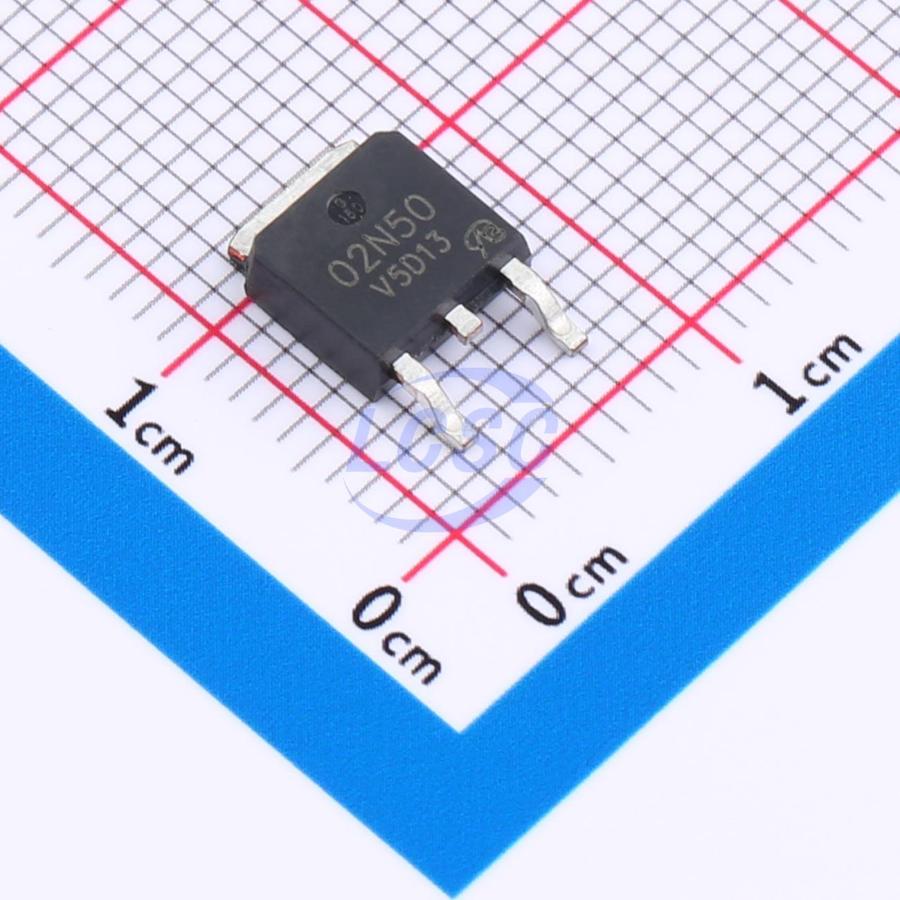

IXTY02N50D-VB
N-Channel 650V 4.5A 60W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 650V 4.5A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IXTY02N50D-VB
- Store part #
- C47993950
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C47993950
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.19 | ₹80.19 |
| 10+ | ₹64.76 | ₹647.60 |
| 30+ | ₹58.03 | ₹1,740.90 |
| 100+ | ₹49.77 | ₹4,977.00 |
| 500+ | ₹38.25 | ₹19,125.00 |
| 1,000+ | ₹36.08 | ₹36,080.00 |
1 × ₹80.19
₹80.19
excl. GST
₹94.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IXTY02N50D-VB
₹80.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 177pF
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 1.417nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 2.1Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.61 g
Overview
Key features
- Low gate charge Qg, simple drive requirements
- Improved gate, avalanche, and dynamic dV/dt robustness
- Fully characterized capacitance, avalanche voltage, and current
- RoHS compliant with directive 2002/95/EC
