VBsemi ElecDatasheet (PDF)

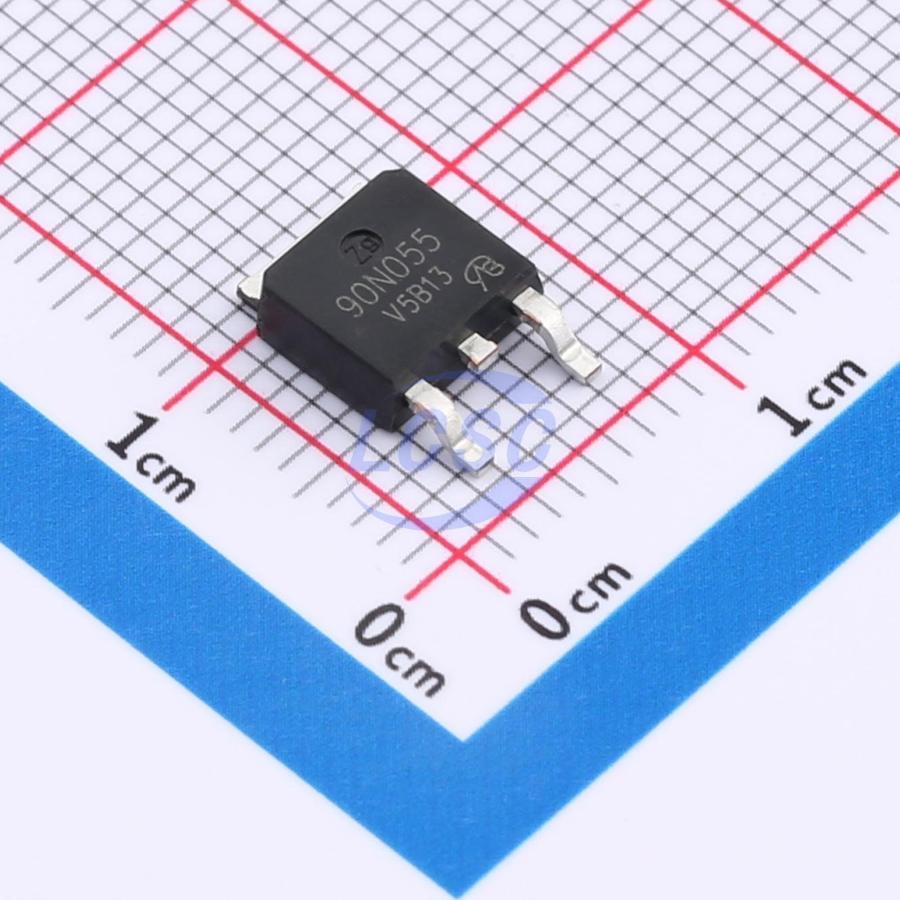

IXTY90N055T2-VB
N-Channel 60V 97A 101W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 97A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IXTY90N055T2-VB
- Store part #
- C46527472
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C46527472
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.25 | ₹116.25 |
| 10+ | ₹99.49 | ₹994.90 |
| 30+ | ₹91.22 | ₹2,736.60 |
| 100+ | ₹82.95 | ₹8,295.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹116.25
₹116.25
excl. GST
₹137.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IXTY90N055T2-VB
₹116.25 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 97A
- Output Capacitance(Coss)
- 555pF
- Ciss-Input Capacitance
- 6.06nF
- Pd - Power Dissipation
- 101W
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 12mΩ@4.5V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
Applications
- Server and telecom power supplies - Switch Mode Power Supplies (SMPS) - Power Factor Correction (PFC) - Lighting - High Intensity Discharge (HID) lamps - Fluorescent lamp ballast lighting
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- RoHS compliant
- Halogen-free
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP9990GH-HF-VB#C22389498VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹123.52 · 20 in stock | View |
 | VBE1606#C416256VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 158 | ₹157.74 · 158 in stock | View |
 | IPD053N06N3G-VB#C19188267VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 37 | ₹130.06 · 37 in stock | View |
 | STD60N55F3-VB#C19188224VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 39 | ₹130.06 · 39 in stock | View |
 | IPD035N06L3G-VB#C22389371VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹123.52 · 20 in stock | View |
