VBsemi ElecDatasheet (PDF)

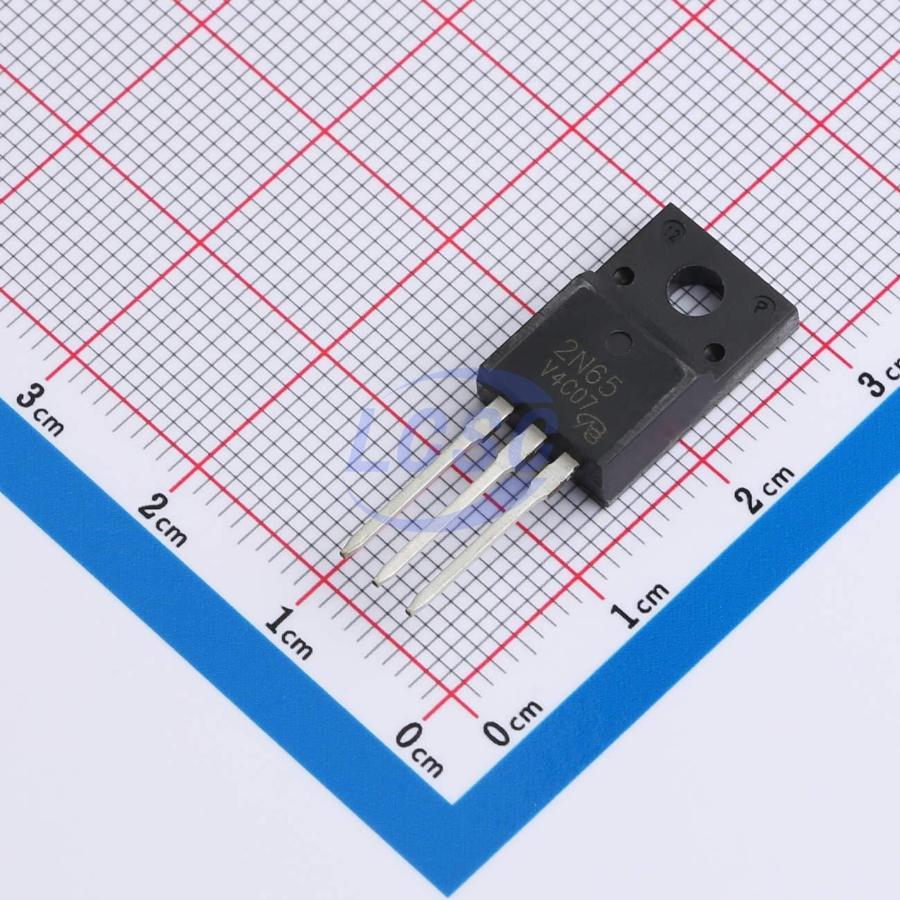

JCS2N65F-VB
N-Channel 650V 2A 25W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 2A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- JCS2N65F-VB
- Store part #
- C20755532
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C20755532
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.90 | ₹72.90 |
| 10+ | ₹57.99 | ₹579.90 |
| 50+ | ₹51.46 | ₹2,573.00 |
| 100+ | ₹43.49 | ₹4,349.00 |
| 500+ | ₹39.91 | ₹19,955.00 |
| 1,000+ | ₹37.81 | ₹37,810.00 |
1 × ₹72.90
₹72.90
excl. GST
₹86.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
JCS2N65F-VB
₹72.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 45pF
- Current - Continuous Drain(Id)
- 2A
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 25W
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 4Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.7 g
Overview
Key features
- Low Gate Charge Qg Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STF2NK60Z-VB#C19188088VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 46 | ₹73.74 · 46 in stock | View |
 | FQPF1N60-VB#C20755721VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 3 | ₹70.16 · 3 in stock | View |
 | AP4002I-HF-VB#C22389557VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹70.16 · 10 in stock | View |
 | 2SK3767-VB#C22389697VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 6 | ₹70.16 · 6 in stock | View |
 | FS2KM-12-VB#C22389725VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹70.16 · 10 in stock | View |
