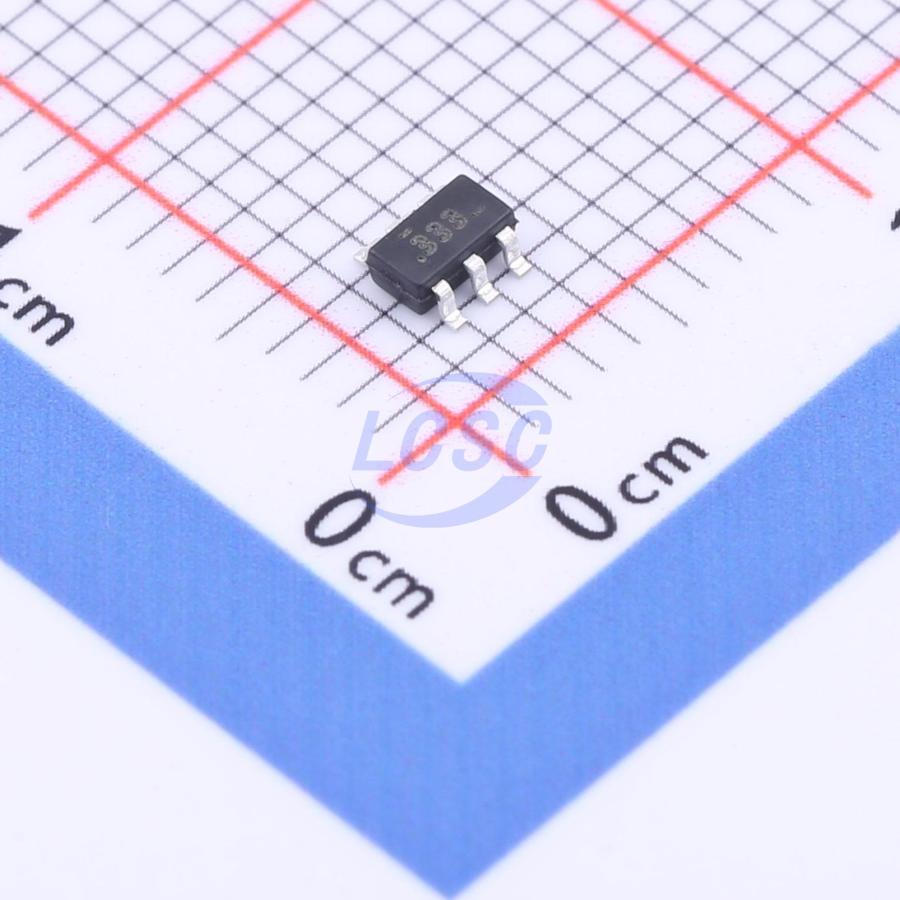

JSM6333C
N-Channel+P-Channel Array 30V 3A 0.95W Surface Mount SOT-23-6L
SOT-23-6LROHS CompliantActive
MOSFET N-CH+P-CH ARR 30V 3A SOT-23-6L
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM6333C
- Store part #
- C2916148
- Package / case
- SOT-23-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,960 in stock
#C2916148
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.11 | ₹115.55 |
| 50+ | ₹18.31 | ₹915.50 |
| 150+ | ₹16.25 | ₹2,437.50 |
| 500+ | ₹13.68 | ₹6,840.00 |
| 3,000+ | ₹12.54 | ₹37,620.00 |
| 6,000+ | ₹11.85 | ₹71,100.00 |
5 × ₹23.11
₹115.55
excl. GST
₹136.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JSM6333C
₹115.55 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 3A
- Ciss-Input Capacitance
- 320pF
- Pd - Power Dissipation
- 950mW
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 130mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 5.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
- Trench Power LV MOSFET technology - High density cell design for low RDS(ON) - High Speed switching
Applications
- Wireless charger
- Load switch
- Power management
Key features
- Low thermal resistance
- Fast switching speed
- High input impedance
- RoHS compliant
