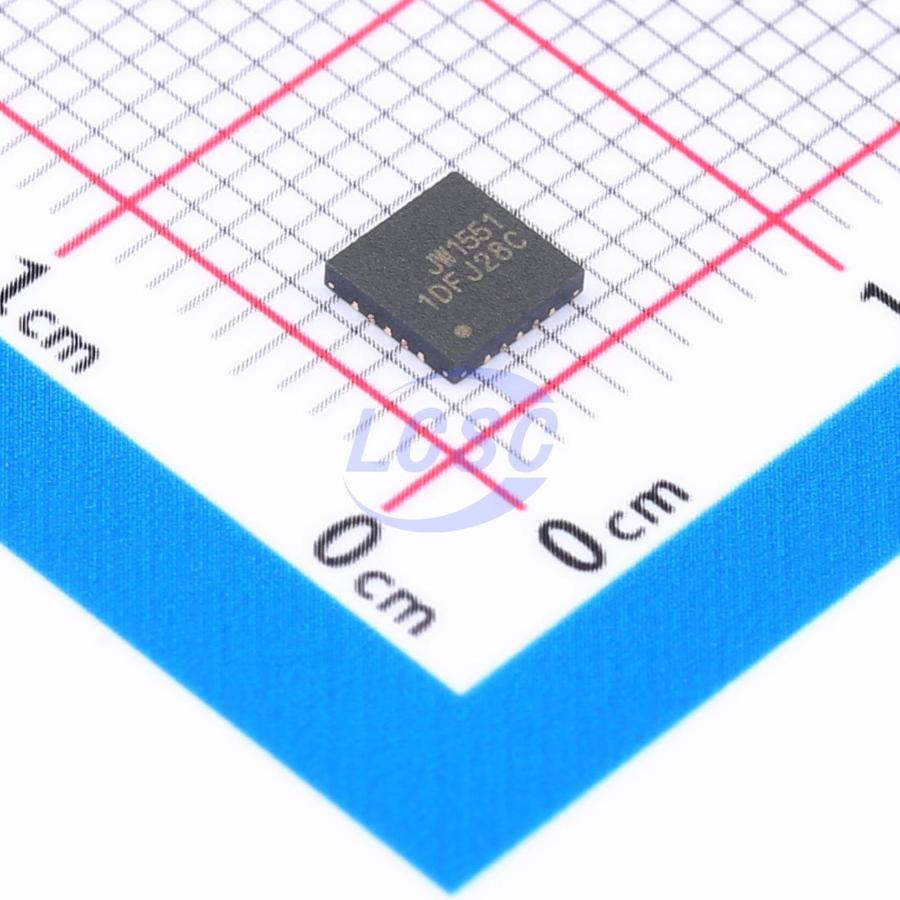

JW1551QFNAH#TRPBF

1.2MHz~1.5MHz 2.5V~38V 600V QFN-20(4x4) AC DC Converters, Offline Switchers

QFN-20(4x4)RoHSActive

Manufacturer: JoulWatt Tech
Manufacturer part #: JW1551QFNAH#TRPBF
Store part #: C5121632
Package / case: QFN-20(4x4)
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,000 in stock

#C5121632

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹134.72	₹134.72
10+	₹108.59	₹1,085.90
30+	₹95.43	₹2,862.90
100+	₹82.48	₹8,248.00
500+	₹74.27	₹37,135.00
1,000+	₹70.17	₹70,170.00

Quantity (min 1)

1 × ₹134.72

₹134.72

excl. GST

₹158.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

JW1551QFNAH#TRPBF

₹134.72 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 1.2MHz~1.5MHz
Voltage - Supply: 2.5V~38V
Voltage - Breakdown: 600V
Topology: Flyback;Boost
Features: Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection
Feedback System: Primary-side feedback
Working Mode: CRM;DCM;QR

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.14 g

Overview

JW1551 is an active clamp flyback controller for offline flyback converter applications. The JW1551 can be adopted to reduce switching loss and provide high efficiency in whole load range. JW1551 provide two control outputs, the main power switch control and the active clamp switch control. JW1551 also has X-cap discharge function to discharge the X-cap when the input is unplugged, which lowers standby power. The JW1551 is available in QFN4X4-20 package.

Applications

Adaptor

Key features

Boundary Mode Operation at Heavy Load
DCM Operation at Light Load
Burst Mode Control
Built-in Soft-start Function X-cap Discharge Function
Include a Boost Converter, Allow Vin Range 2.5-38V
Maximum Frequency Setting with a Single External Resistor
Adjustable Line Compensation
High Switching Frequency up to 1.5MHz
Reliable Fault Protections: VIN OVP/UVP, VS OVP/UVP, SCP, Brown-In/Out, OTP, CS Open and Short Protection
QFN4X4-20 Package
