JoulWatt TechDatasheet (PDF)

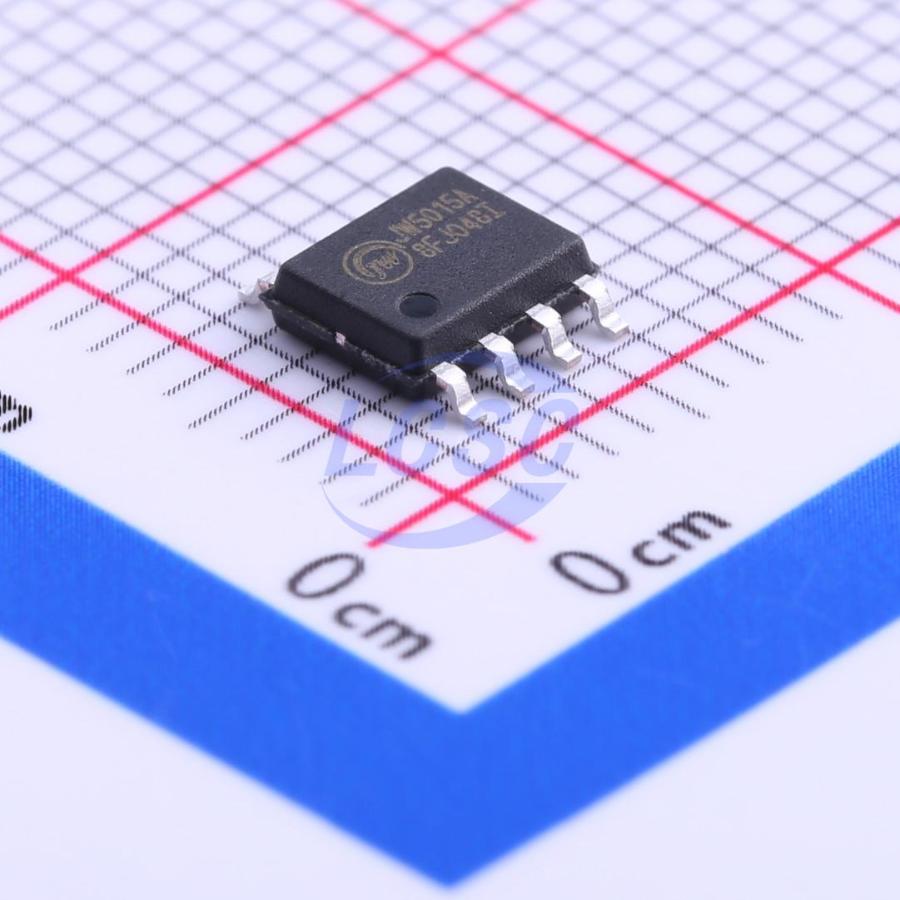

JW5015AESOP#TRPBF
220kHz~660kHz Step-down type Adjustable 800mV~37V 2A ESOP-8 Voltage Regulators - DC DC Switching Regulators
ESOP-8RoHSActive
2A, 40V Synchronous Step-Down Converter
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW5015AESOP#TRPBF
- Store part #
- C185108
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,419 in stock
#C185108
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.23 | ₹73.23 |
| 10+ | ₹58.24 | ₹582.40 |
| 30+ | ₹50.86 | ₹1,525.80 |
| 100+ | ₹43.25 | ₹4,325.00 |
| 500+ | ₹41.08 | ₹20,540.00 |
| 1,000+ | ₹38.68 | ₹38,680.00 |
1 × ₹73.23
₹73.23
excl. GST
₹86.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JW5015AESOP#TRPBF
₹73.23 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 220kHz~660kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Light load efficient mode;Built-in LDO regulator;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.6V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~37V
- Output Current
- 2A
- Quiescent Current
- 65uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The JW5015A is a current mode monolithic buck switching regulator. Operating with an input range of 3.6V~40Vz, the JW5015A delivers 2A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, regulators operate in low frequency to maintain high efficiency and low output ripple. Current mode control provides tight load transient response and cycle-by-cycle current limit. The JW5015A guarantees robustness with short-circuit protection, thermal protection, start-up current run-away protection, and input under voltage lockout. The JW5015A is available in 8-pin ESOP package, which provides a compact solution with minimal external components. The package has an exposed pad for low thermal resistance. The JW5015A is a synchronous, current-mode, step-down regulator. It regulates input voltage from 3.6V to 40V down to an output voltage as low as 0.8V, and is capable of supplying up to 2A of load current.
Applications
- Distributed Power Systems
- Networking Systems
- FPGA, DSP, ASIC Power Supplies
- Green Electronics/ Appliances
- Notebook Computers
Key features
- Distributed Power Systems
- Networking Systems
- FPGA, DSP, ASIC Power Supplies
- Green Electronics/ Appliances
- Notebook Computers
