JoulWatt TechDatasheet (PDF)

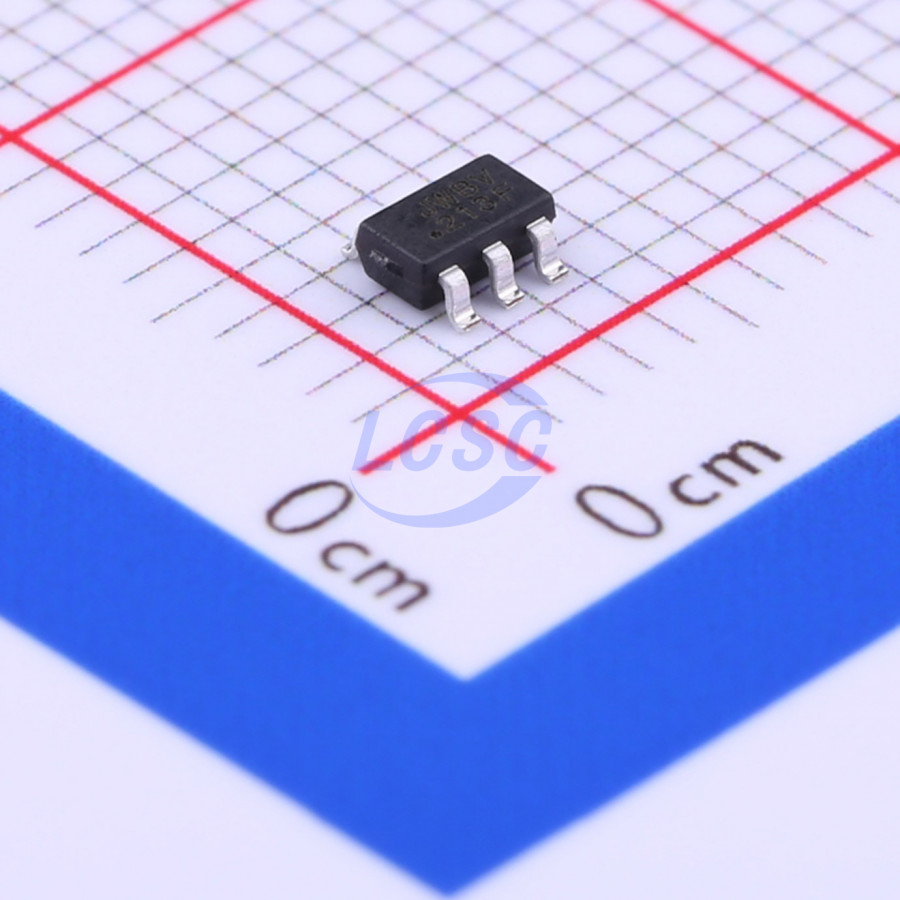

JW5017SSOTB#TRPBF
1.2MHz Step-down type Fixed 800mV~21V 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
1.2A, 26V Synchronous Step-Down Converter
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW5017SSOTB#TRPBF
- Store part #
- C371172
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,610 in stock
#C371172
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.71 | ₹98.55 |
| 50+ | ₹15.33 | ₹766.50 |
| 150+ | ₹13.47 | ₹2,020.50 |
| 500+ | ₹11.13 | ₹5,565.00 |
| 3,000+ | ₹10.78 | ₹32,340.00 |
| 6,000+ | ₹10.15 | ₹60,900.00 |
5 × ₹19.71
₹98.55
excl. GST
₹116.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JW5017SSOTB#TRPBF
₹98.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Light load efficient mode
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 4.5V~26V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~21V
- Output Current
- 1.2A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The M*5017S is a current mode monolithic buck switching regulator. Operating with an input range of 4.5V~26V, the JW5017S delivers 1.2A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, regulators operate in low frequency to maintain high efficiency and low output ripple. Current mode control provides tight load transient response and cycle-by-cycle current limit. The JW5017S guarantees robustness with over current protection and hiccup, thermal protection, start-up current run-away protection, and input under voltage lockout. The JW5017S is available in 6-pin SOT23-6 package, which provides a compact solution with minimal external components.
Applications
- Distributed Power Systems
- Automotive Systems
- High Voltage Power Conversion
- Industrial Power Systems
- Battery Powered Systems
Key features
- 4.5 V to 26 V operating input range 1.2A output current
- Up to 94% efficiency
- High efficiency (>78%) at light load
- Internal Soft-Start
- Fixed 1.2MHz Switching frequency
- Available in SOT23-6 package
- Input under voltage lockout
- Start-up current run-away protection
- Over current protection and Hiccup
- Thermal protection
