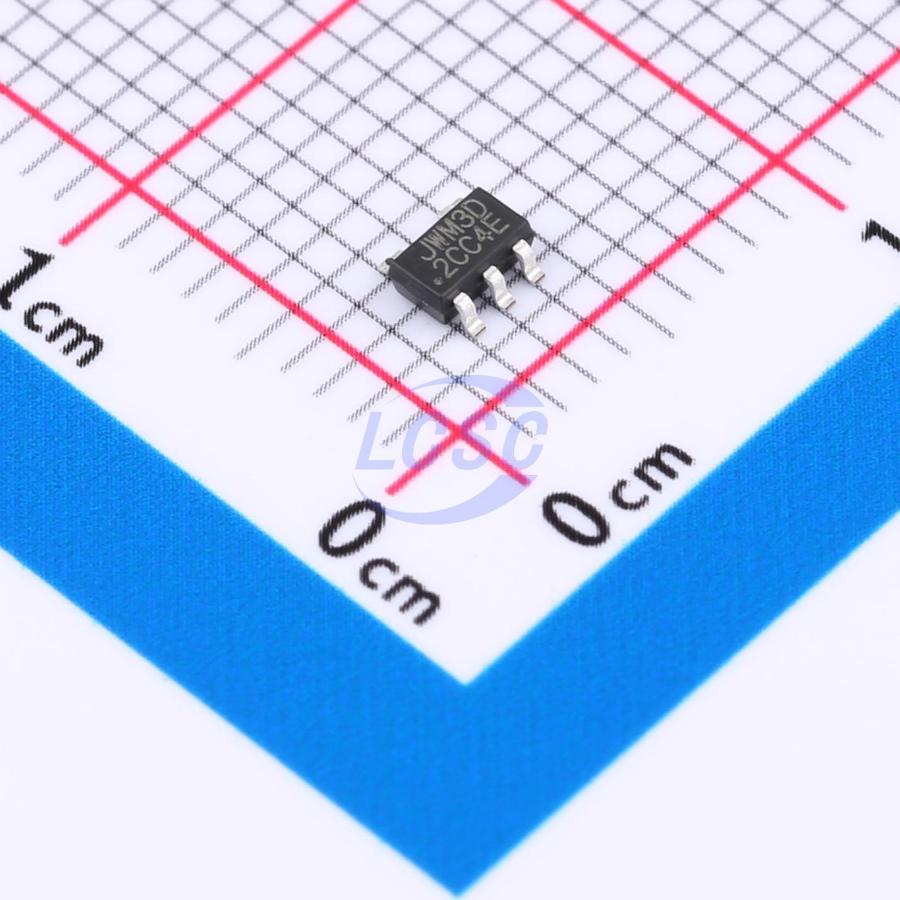

JW5250ASOTA#TR
1.5MHz Step-down type Adjustable 600mV~6V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5Active
1A, 6V, 1.5MHz, 40uA IQ Synchronous Step-Down Converter
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW5250ASOTA#TR
- Store part #
- C5331999
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,140 in stock
#C5331999
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.99 | ₹69.90 |
| 100+ | ₹5.58 | ₹558.00 |
| 300+ | ₹4.87 | ₹1,461.00 |
| 3,000+ | ₹4.17 | ₹12,510.00 |
| 6,000+ | ₹3.74 | ₹22,440.00 |
| 9,000+ | ₹3.53 | ₹31,770.00 |
10 × ₹6.99
₹69.90
excl. GST
₹82.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JW5250ASOTA#TR
₹69.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1.5MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Hiccup current limiting;Protection latch;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.7V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~6V
- Output Current
- 1A
- Quiescent Current
- 40uA
Packaging & compliance
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
The JW5250A is a monolithic buck switching regulator based on constant on-time (COT) control for fast transient response. Operating with an input range of 2.7V - 6.0V, the JW5250A delivers 1A of continuous output current with integrated P-Channel and N-Channel MOSFETs. The internal synchronous power switches provide high efficiency. At light loads, the regulator operate in low frequency to maintain high efficiency and low output ripples. The JW5250A guarantees robustness with hiccup output short-circuit protection, FB short-circuit protection, start-up current run-away protection, input under voltage lockout and hot-plug in, and thermal protection. The JW5250A is available in a 5-pin SOT23-5 package, which provides a compact solution with minimal external components.
Applications
- 5V or 3.3V Point of Load Conversion
- Set Top Boxes
- Telecom/Networking Systems
- Storage Equipment
- GPU/DDR Power Supply
Key features
- 2.7V to 6.0V operating input range
- Up to 1A output current
- Up to 92% peak efficiency
- Internal soft-start
- 1.5MHz switching frequency
- Input under voltage lockout
- Hot-plug in protection
- Short circuit protection
- Thermal protection
- Available in a SOT23-5 package
