JoulWatt TechDatasheet (PDF)

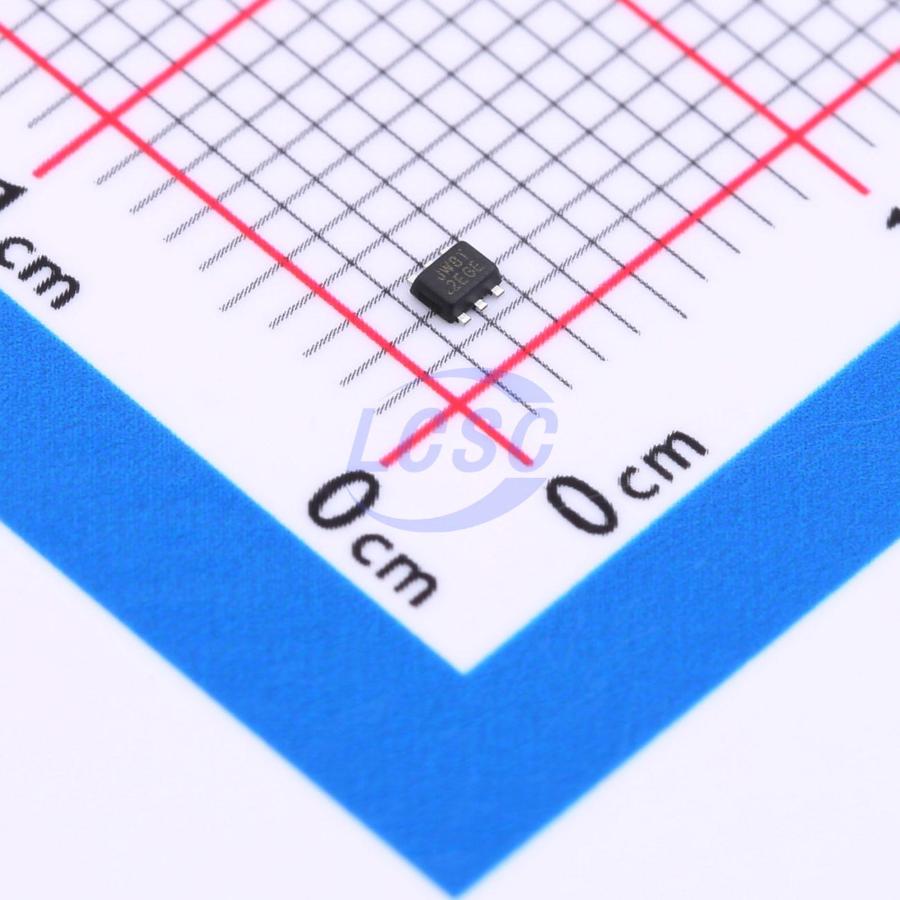

JW5393FSOTI#TR
Step-down type 480kHz~720kHz Adjustable 3A SOT-563 Voltage Regulators - DC DC Switching Regulators
SOT-563RoHSActive
18V/3A Sync. Step-Down Converter
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW5393FSOTI#TR
- Store part #
- C5121636
- Package / case
- SOT-563
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,195 in stock
#C5121636
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.63 | ₹98.15 |
| 50+ | ₹17.15 | ₹857.50 |
| 150+ | ₹16.07 | ₹2,410.50 |
| 500+ | ₹14.74 | ₹7,370.00 |
| 2,500+ | ₹14.14 | ₹35,350.00 |
| 5,000+ | ₹13.79 | ₹68,950.00 |
5 × ₹19.63
₹98.15
excl. GST
₹115.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
JW5393FSOTI#TR
₹98.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 480kHz~720kHz
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection;Hiccup current limiting
- Topology
- Buck
- Output Type
- Adjustable
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Quiescent Current
- 220uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
The JW5393 and JW5393F are monolithic buck switching regulators based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5393 and JW5393F deliver 3A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, JW5393 operates in low frequency to maintain high efficiency. JW5393 and JW5393F guarantee robustness with output short protection, thermal protection, current run-away protection and input under voltage lockout. JW5393 and JW5393F are available in SOT563 package, which provide a compact solution with minimal external components.
Applications
- Distributed Power Systems
- Networking Systems
- FPGA, DSP, ASIC Power Supplies
- Green Electronics/ Appliances
- Notebook Computers
Key features
- 4.5V to 18V operating input range 3A output current
- Up to 95% efficiency
- PFM mode (JW5393) at light load
- FCC mode (JW5393F) at light load
- 600kHz switching frequency
- Internal soft-start
- Input under voltage lockout
- Current run-away protection
- Output short protection
- Thermal protection
- Available in SOT563 package
