Kiwi Instruments

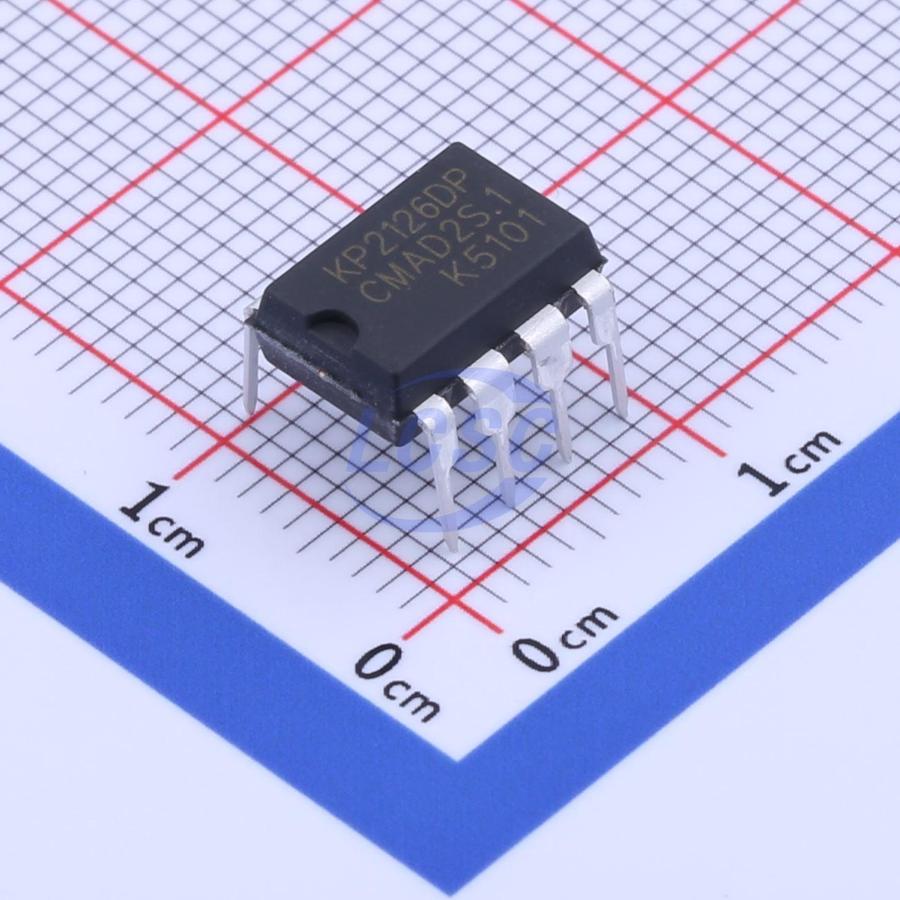

KP2126DP

Converter Offline Flyback Topology 35kHz~70kHz DIP-8

DIP-8RoHSActive

Multi-mode, constant-current and constant-voltage primary-side control power switch

Manufacturer: Kiwi Instruments
Manufacturer part #: KP2126DP
Store part #: C668641
Package / case: DIP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,198 in stock

#C668641

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹88.03	₹88.03
10+	₹72.86	₹728.60
50+	₹60.88	₹3,044.00
100+	₹53.50	₹5,350.00
500+	₹48.91	₹24,455.00
1,000+	₹46.52	₹46,520.00

Quantity (min 1)

1 × ₹88.03

₹88.03

excl. GST

₹103.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

KP2126DP

₹88.03 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Frequency - Switching: 35kHz~70kHz
Voltage - Supply: 11V~27V
Voltage - Breakdown: 650V
Topology: Flyback
Features: Audio noise elimination;Cable compensation;Leading edge blanking;Under-voltage lockout;Constant Current Mode (CC);Constant Voltage (CV);Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection
Feedback System: Primary-side feedback

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.866 g

Overview

KP2126 is a high-performance primary-side controller that delivers high-accuracy constant voltage (CV) and constant current (CC) output performance, making it particularly suitable for low-power offline charger applications. In CV mode, KP2126 employs a multi-mode operation combining amplitude modulation (AM) and frequency modulation (FM) control, improving system efficiency and reliability. In CC mode, the device adopts FM control with integrated line voltage and load voltage CC compensation. KP2126 operates without audible noise while ensuring excellent dynamic performance. The integrated line-drop compensation enables superior CV output characteristics. KP2126 integrates multiple protection features: VDD under-voltage lockout (UVLO), VDD over-voltage protection (OVP), cycle-by-cycle over-current protection (OCP), short-circuit protection (SCP), and VDD clamping.

Applications

Mobile phone chargers
AC adapters
Charger applications

Key features

Integrated 650V MOSFET
Flyback topology support
±4% constant current/constant voltage accuracy
Standby power consumption <70mW
Multi-mode primary-side control
Noise-free operation
Optimized dynamic response
Adjustable line loss compensation
Integrated CC compensation for line voltage and load voltage
Comprehensive integrated protection features: Short-circuit Protection (SLP), Over-Temperature Protection (OTP), Cycle-by-Cycle Current Limiting Protection (OCP), Leading-Edge Blanking (LEB), floating pin protection, VDD over/under-voltage protection, and clamp protection
Available in SOP-8 and DIP-8 packages
