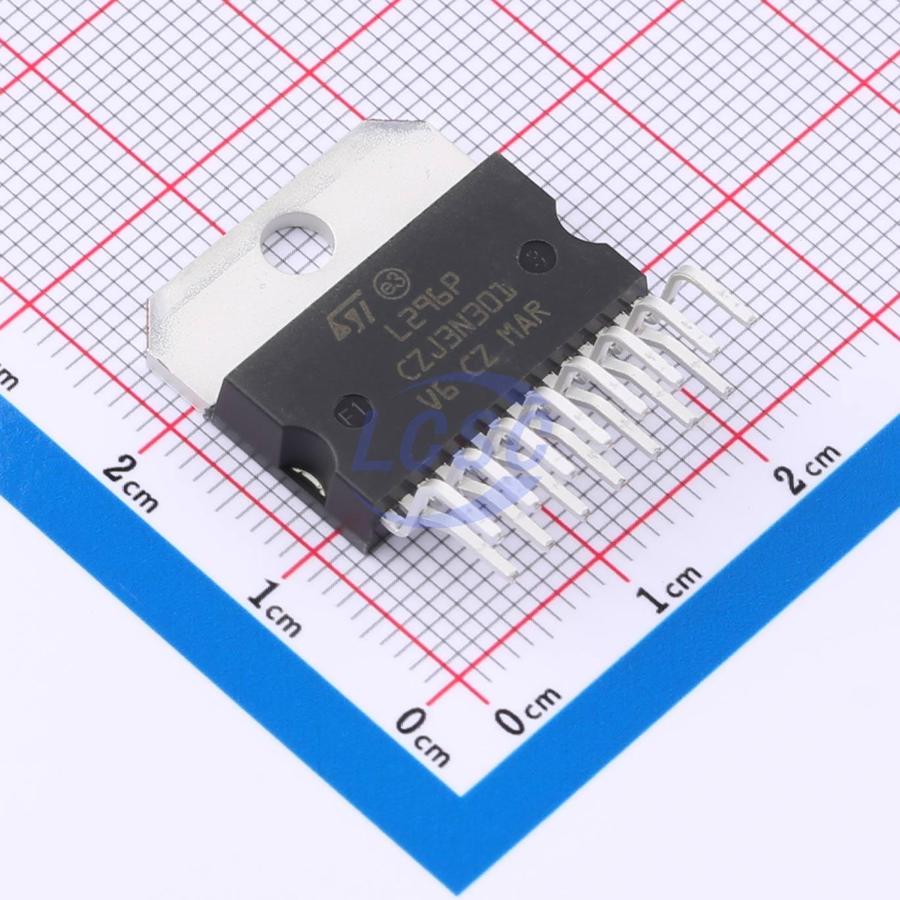

High-current switching voltage regulator
- Manufacturer
- ST
- Manufacturer part #
- L296P
- Store part #
- C1355692
- Package / case
- Multiwatt-15V
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C1355692
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,646.38 | ₹1,646.38 |
| 10+ | ₹1,401.10 | ₹14,011.00 |
| 30+ | ₹1,251.62 | ₹37,548.60 |
| 100+ | ₹1,126.48 | ₹1,12,648.00 |
1 × ₹1,646.38
₹1,646.38
excl. GST
₹1,942.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
L296P
₹1,646.38 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Frequency - Switching
- 100kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Adjustable soft-start;Frequency synchronization;External compensation;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 9V~46V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Output Voltage
- 5.1V~40V
- Quiescent Current
- 66mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 9 g
Overview
The L296 and L296P are stepdown power switching regulators delivering 4 A at a voltage variable from 5.1 V to 40 V. Features of the devices include soft start, remote inhibit, thermal protection, a reset output for microprocessors and a PWM comparator input for synchronization in multichip configurations. The L296P incudes external programmable limiting current. The L296 and L296P are mounted in a 15 - lead Multiwat plastic power package and requires very few external components. Efficient operation at switching frequencies up to 200 KHz allows a reduction in the size and cost of external filter components. A voltage sense input and SCR drive output are provided for optional crowbar overvoltage protection with an external SCR.
Key features
- 4 A OUTPUT CURRENT
- 5.1 V TO 40 V OUTPUT VOLTAGE RANGE
- 0 TO 100% DUTY CYCLE RANGE
- PRECISE (±2%) ON - CHIP REFERENCE
- SWITCHING FREQUENCY UP TO 200 KHz
- VERY HIGH EFFICIENCY (UP TO 90%)
- VERY FEW EXTERNAL COMPONENTS
- SOFT START
- RESET OUTPUT
- EXTERNAL PROGRAMMABLE LIMITING CURRENT (L296P)
- CONTROL CIRCUIT FOR CROWBAR SCR
- INPUT FOR REMOTE INHIBIT AND SYNCHRONUS PWM
- THERMAL SHUTDOWN
